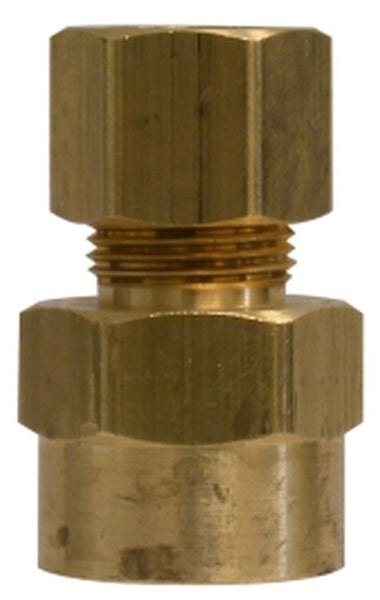

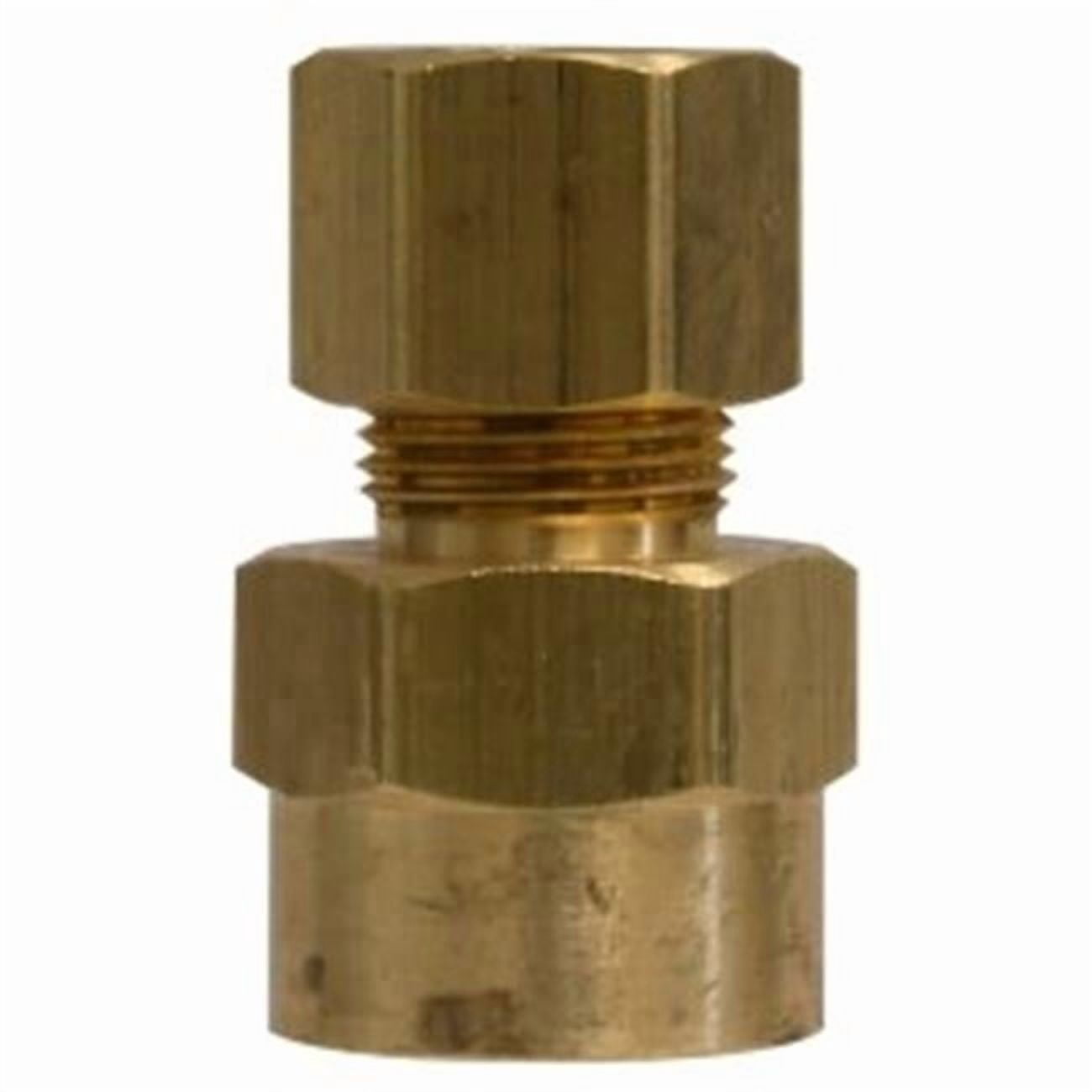

Midland Metal 18146 Female Compression x FIP Adapter 1/4 x 1/4

Product Description

Midland Metal 18146 is a brass female compression to FIP adapter that connects 1/4 in compression tubing to 1/4 in female pipe threads. It is compatible with copper, aluminum, and thermoplastic tubing and has a straight connector shape. The fitting is rated to 300 psi and -65 to 250 deg F, with hex size 0.68 in, thread size 7/16-24 x 1/4-18, center-to-end 1.03 in, and weight 0.090 lb.

• Brass female compression to FIP/FNPT adapter for 1/4 in compression to 1/4 in pipe threads
• Pressure rating 300 psi; temperature range -65 to 250 deg F; straight connector shape
• Compatible with copper, aluminum, and thermoplastic tubing; hex size 0.68 in; thread size 7/16-24 x 1/4-18

Product Highlights

Brass 1/4 in compression to 1/4 in FIP adapter; 300 psi; -65 to 250 deg F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18146

Technical Specifications

• Brand: Midland Metal
• MPN: 18146
• Material: Brass
• Fitting Type: Adapter
• Category: Brass Fittings
• Connection Type 1: Compression
• Connection Size 1: 1/4 in
• Connection Type 2: FIP / FNPT (female pipe thread)
• Connection Size 2: 1/4 in
• For Use With: Copper; Aluminum; Thermoplastic tubing
• Pressure Rating: 300 psi
• Temperature Rating: -65 to 250 deg F
• Shape: Straight/Connector
• Hex Size: 0.68 in
• Thread Size: 7/16-24 x 1/4-18
• Center to End: 1.03 in
• Weight: 0.090 lb
