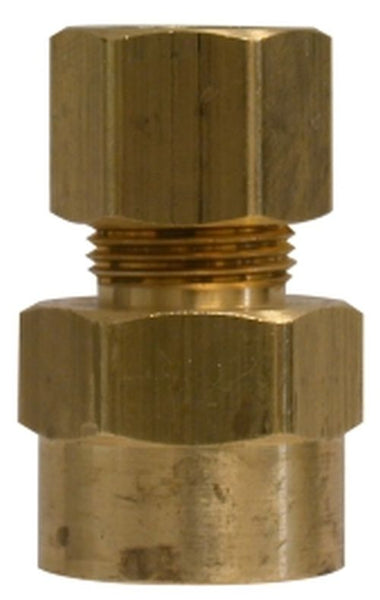

Midland Metal 18145 Brass 1/4 x 1/8 Comp x FIP Adapter (Pack of 10)

Product Description

The Midland Metal 18145 is a brass female adapter that connects 1/4-inch compression tubing to a 1/8-inch female pipe thread (FNPTF). Sold as a pack of 10, the fitting includes 7/16-24 x 1/8-27 threads, a 0.56 in hex, and 0.78 in center-to-end. It is suitable for copper, aluminum, and thermoplastic tubing and is rated to 300 psi with a temperature range of -65 to 250 deg F.

• Brass construction; 1/4 in compression to 1/8 in FNPTF female connection
• Thread size 7/16-24 x 1/8-27, hex 0.56 in, center-to-end 0.78 in
• Rated 300 psi; temperature range -65 to 250 deg F; for copper, aluminum, and thermoplastic tubing

Product Highlights

Pack of 10 brass compression-to-FNPTF female adapters with 7/16-24 x 1/8-27 threads and 0.78 in center-to-end.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18145

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 18145
• Model: 18145
• Product Type: Female adapter
• Material: Brass
• Connection 1 Size: 1/4 in
• Connection 1 Type: Compression
• Connection 2 Size: 1/8 in
• Connection 2 Type: FNPTF (female pipe thread)
• Thread Size: 7/16-24 x 1/8-27
• Hex Size: 0.56 in
• Center to End: 0.78 in
• For Use With: Copper, aluminum, and thermoplastic tubing
• Pressure Rating: 300 psi
• Temperature Range: -65 to 250 deg F
• Package Quantity: 10
• Weight: 0.07 lb
• Catalog Number: 2095911
