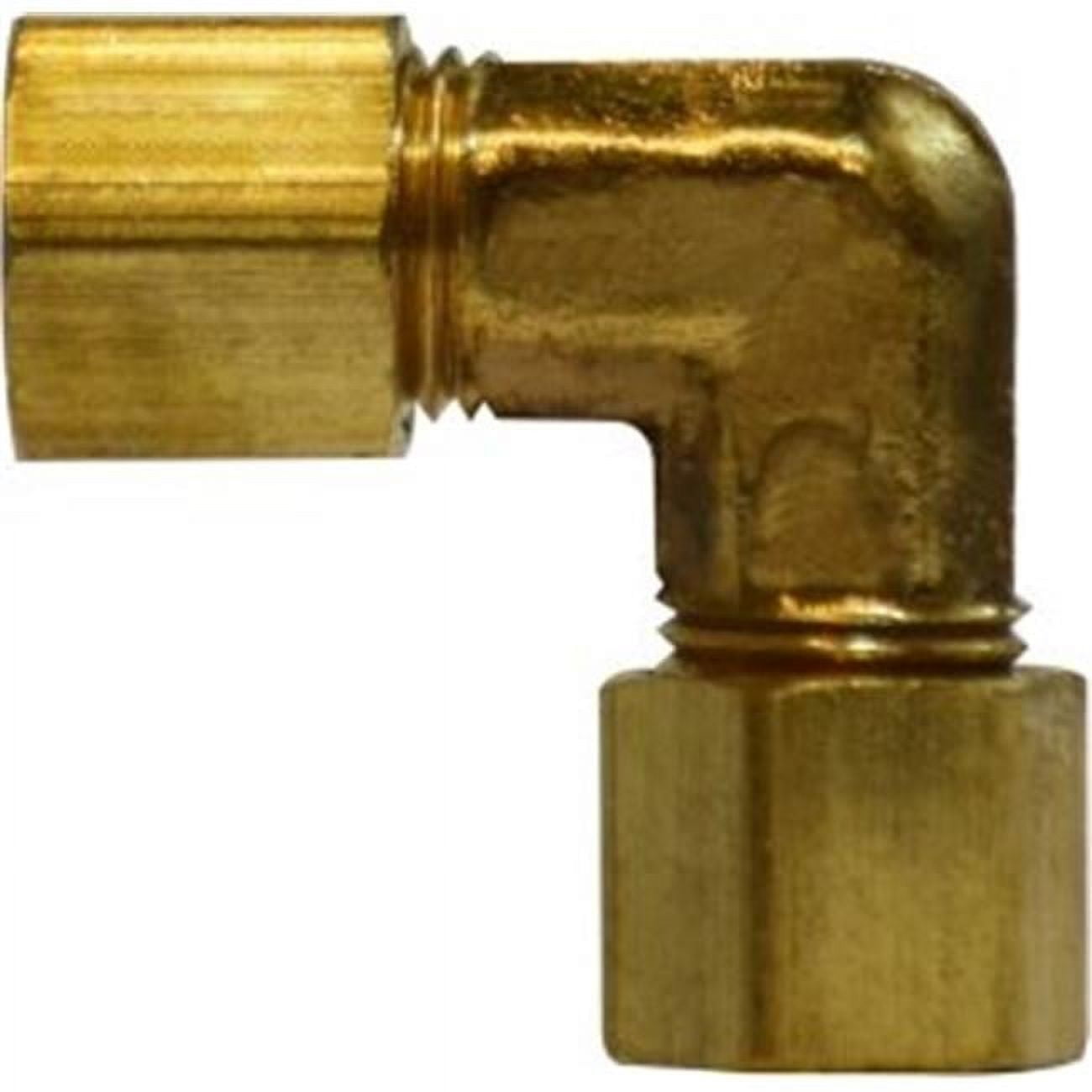

Midland Metal 18126 3/8 Compression Union Elbow 90 Degree Pack of 10

Product Description

Midland Metal 18126 is a brass 3/8-inch compression union elbow designed to provide a 90-degree change of direction for tube or hose connections. Supplied as a pack of 10, the fitting is compatible with copper, aluminum, and thermoplastic tubing and uses 9/16-24 threads. It is rated to 200 psi and -65 to 250 °F for plumbing, pneumatic, and hydraulic applications.

• Brass 3/8-inch compression union elbow with 90-degree configuration
• Compatible with copper, aluminum, and thermoplastic tubing; 9/16-24 thread
• Pressure rating 200 psi and temperature range -65 to 250 °F; pack of 10

Product Highlights

Brass 3/8-inch compression union elbow, 90-degree; 9/16-24 thread; 200 psi; -65 to 250 °F; pack of 10

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18126

Technical Specifications

• Brand: Midland Metal
• MPN: 18126
• Material: Brass
• Fitting Type: Compression union elbow (90 degree)
• Size: 3/8 inch (compression)
• Quantity: Pack of 10
• Number of Items: 10
• Product Type: Hose/Pipe Fitting
• Category: Brass Fittings
• Connection Size: 3/8 in (both ends)
• Connection Type: Compression (union)
• Thread Size: 9/16-24
• Pressure Rating: 200 psi
• Temperature Rating: -65 to 250 °F
• For Use With: Copper, aluminum and thermoplastic tubing
• Body Size: 0.43 in
• Center to End: 0.72 in
• Weight: 0.120 lb
• Shape/Angle: 90 degree
