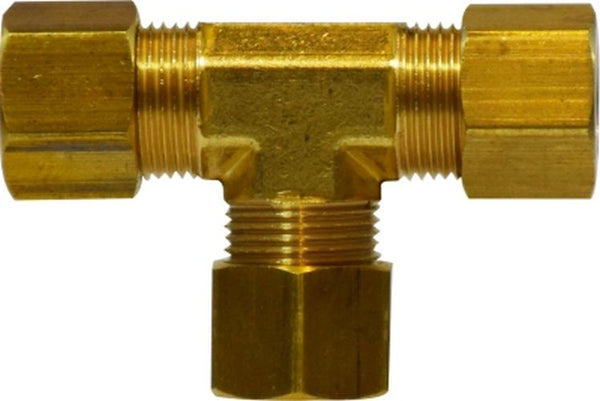

Midland Metal 18105 3/8 Compression Tee (3/8 In)

Product Description

Midland Metal 18105 is a forged brass tee fitting with three 3/8 in compression connections designed for use with copper, aluminum, and thermoplastic tubing. It is rated to 200 psi and has an operating temperature range of -65 to 250 deg F. The fitting features a 9/16-24 thread size, a 1/2 in body size, and a 3/4 in center-to-end dimension. Typical applications include plumbing and fluid distribution systems requiring compression fittings.

• Forged brass construction with three 3/8 in compression connections
• Pressure rating 200 psi and temperature range -65 to 250 deg F
• 9/16-24 thread size; compatible with copper, aluminum, and thermoplastic tubing

Product Highlights

Forged brass 3/8 in compression tee; 200 psi; -65 to 250 deg F; 9/16-24 thread

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18105

Technical Specifications

• Brand: Midland Metal Mfg.
• Manufacturer Part Number: 18105
• Category: Brass Fittings
• Fitting Type: Tee
• Shape: Tee
• Material: Brass
• Construction: Forged Brass
• Connection Type: Compression (x3)
• Connection Size: 3/8 in (three connections)
• Compatible Tubing: Copper; Aluminum; Thermoplastic tubing
• Pressure Rating: 200 psi
• Temperature Rating: -65 to 250 deg F
• Thread Size: 9/16-24
• Body Size: 1/2 in
• Center to End: 3/4 in
• Section: Compression
