Midland Metal 18103 1/4 Compression Tee (Pack of 10)

Product Description

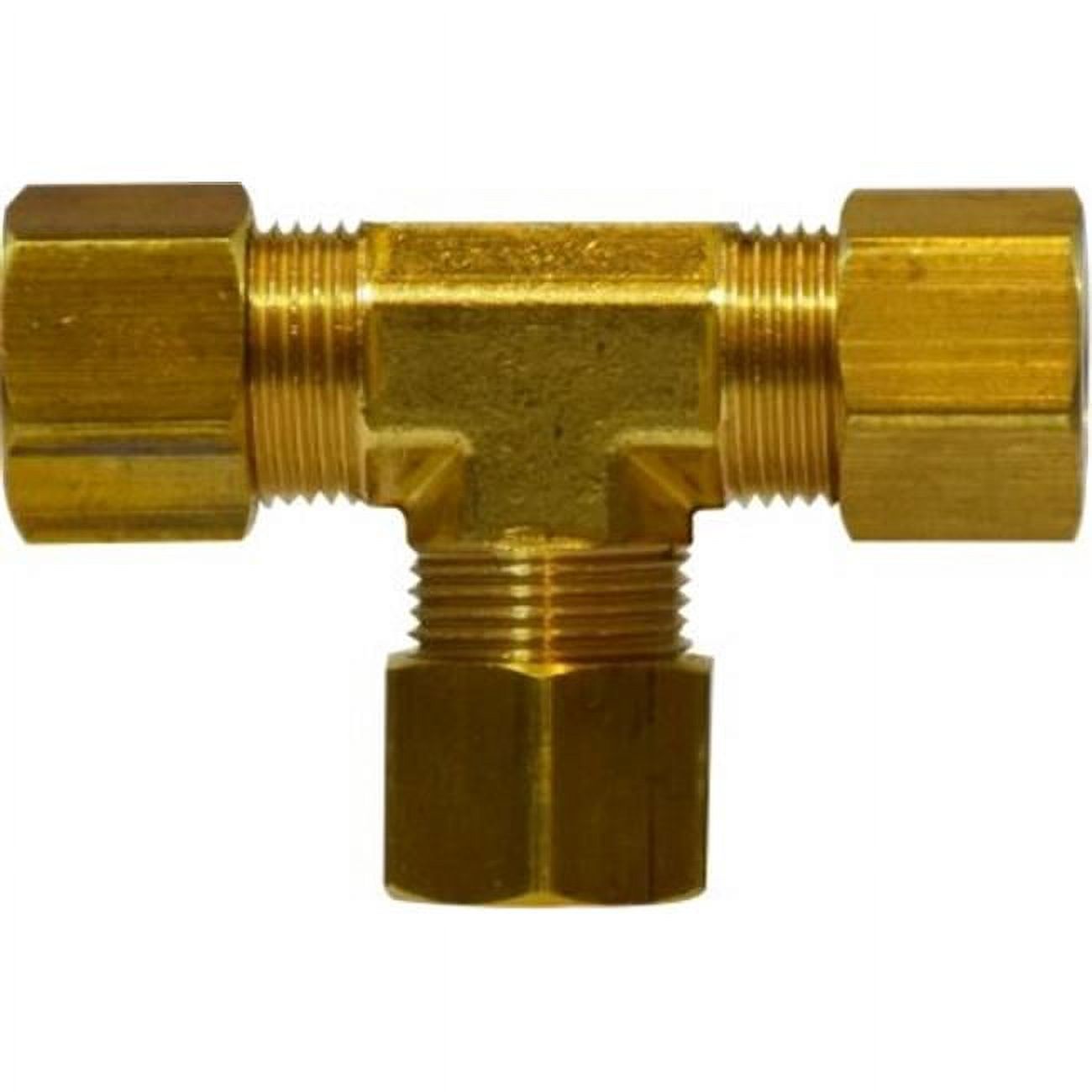

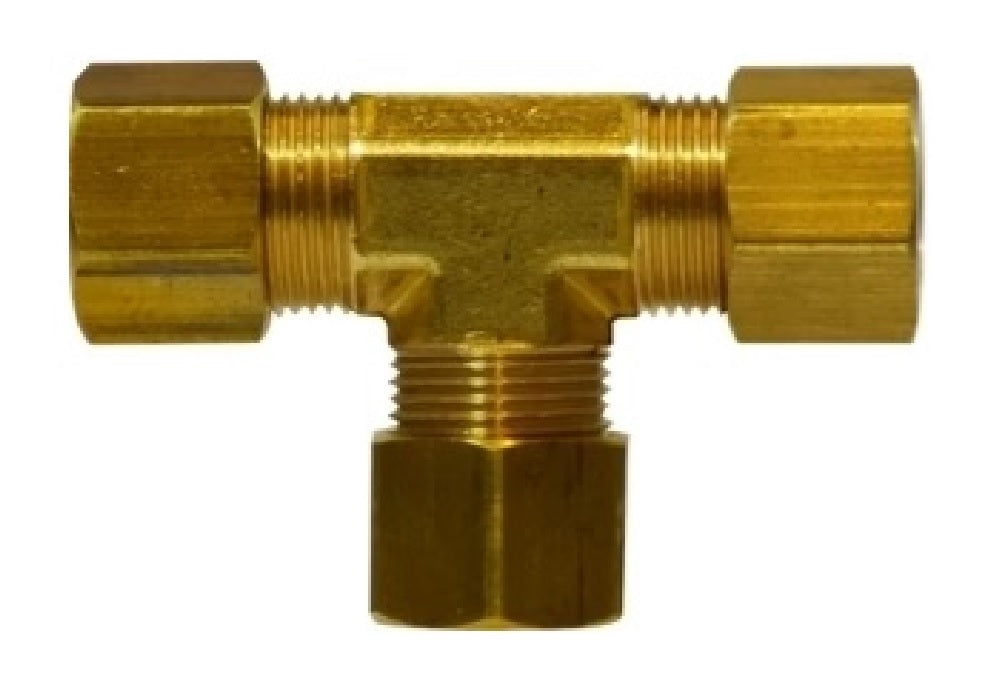

The Midland Metal 18103 is a brass 1/4 compression tee sold as a pack of 10. Each fitting provides three compression connections for joining 1/4-inch tubing or pipe and is suitable for copper, aluminum, and thermoplastic tubing in plumbing, hydraulic, or pneumatic applications. Specification data lists a 7/16-24 thread, 300 psi pressure rating, and a temperature range of -65 to 250 deg F; body measures 0.36 in with a 0.63 in center-to-end.

• Brass compression tee with three 1/4 in compression connections for joining tubing lines
• Compatible with copper, aluminum, and thermoplastic tubing; intended for plumbing, hydraulic, and pneumatic use
• 7/16-24 thread, 300 psi pressure rating, temperature range -65 to 250 deg F; body 0.36 in, center-to-end 0.63 in

Product Highlights

Pack of 10 brass 1/4 in compression tees; 300 psi rating; 7/16-24 thread; compatible with copper, aluminum, and thermoplastic tubing.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18103

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 18103
• Model Number: 18-103 / 18103
• Material: Brass
• Material Construction: Forged brass
• Type: Compression tee
• Size: 1/4 in
• Pack Quantity: 10
• Connection Size: 1/4 in (three ends)
• Connection Type: Compression (three ends)
• For Use With: Copper, aluminum, and thermoplastic tubing
• Pressure Rating: 300 psi
• Temperature Range: -65 to 250 deg F
• Thread Size: 7/16-24
• Body Size: 0.36 in
• Center to End: 0.63 in
• Weight: 0.100 lb
• Product Type: Hose/Pipe fitting / Tee
