Midland Metal 18077 1/4 x 3/16 reducing comp union

Product Description

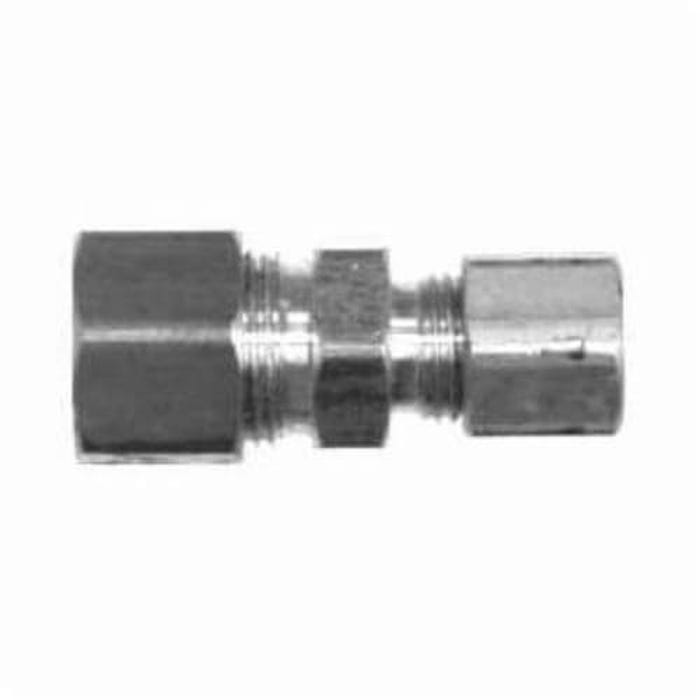

The Midland Metal 18077 is a brass reducing compression union designed for connecting 1/4 inch to 3/16 inch tubing. It is suitable for use with copper, aluminum, and thermoplastic tubing, with a pressure rating of 300 psi and a temperature range of -65 to 250 degrees Fahrenheit. This fitting features a 0.44 inch hex size and a 7/16-24 thread size, making it ideal for low and medium pressure tubing connection work.

• Reducing Compression Union
• Made of Brass
• Suitable for Copper, Aluminum, and Thermoplastic Tubing

Product Highlights

Brass reducing compression union for 1/4 to 3/16 inch tubing, rated for 300 psi and -65 to 250 deg F.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18077

Technical Specifications

• MPN: 18077
• Brand: Midland Metal Mfg.
• Center to Center: 0.78 in
• Category: Brass Fittings
• Connection Size 1: 1/4 in
• Connection Size 2: 3/16 in
• Connection Type 1: Compression
• Connection Type 2: Compression
• Fitting Description: Reducing Union
• Fitting Type: Union
• Compatible Tubing Materials: Copper, Aluminum, and Thermoplastic Tubing
• Hex Size: 0.44 in
• Material: Brass
• Pressure Rating: 300 psi
• Section: Compression
• Shape: Union
• Temperature Rating: -65 to 250 deg F
• Thread Size: 7/16-24
• Manufacturer: Midland Metal Manufacturing
• Standard Approvals: ASA, ASME and SAE
