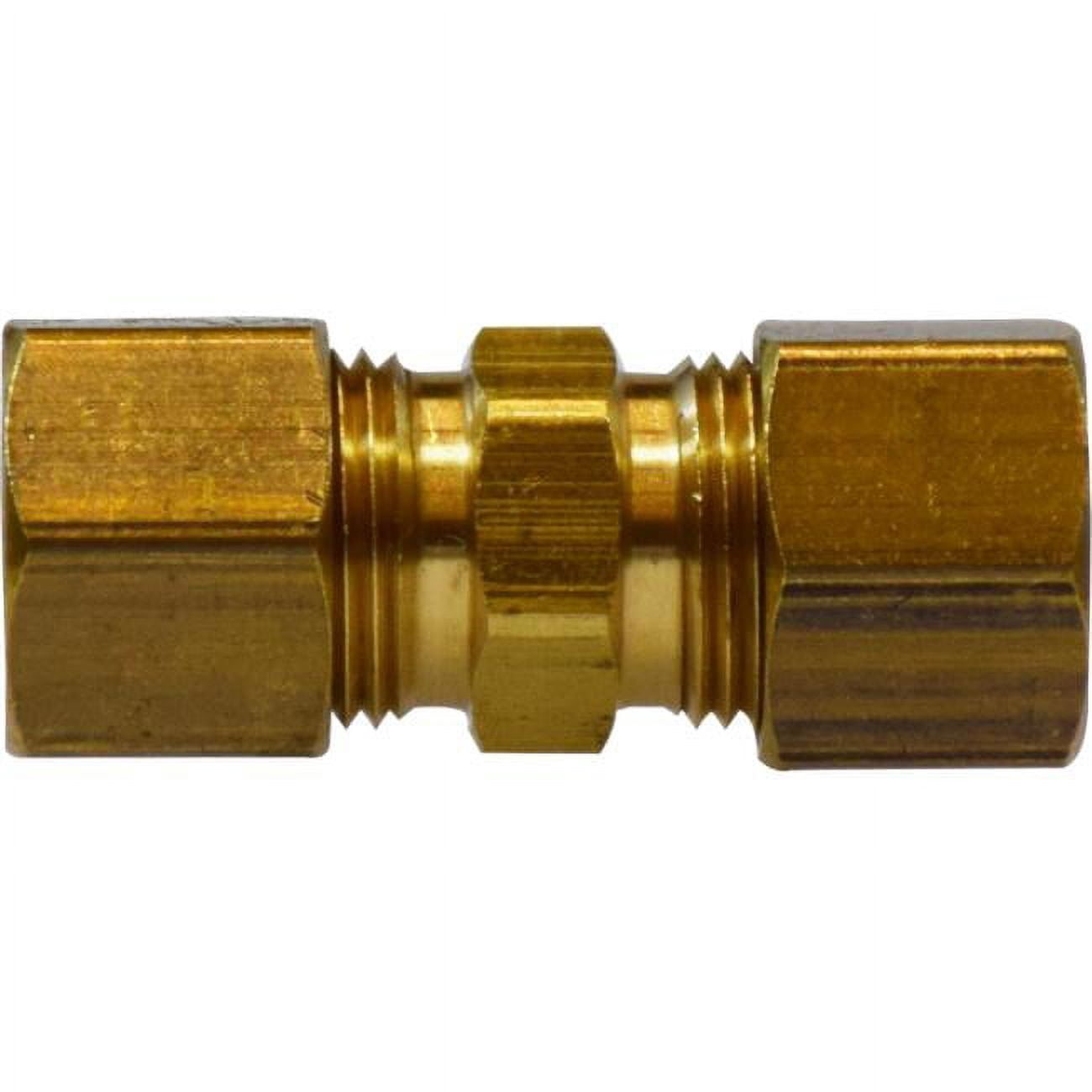

Midland Metal 18069 Tube Union 5/8 in Compression (00062-10)

Product Description

The Midland Metal 18069 is a brass compression union used to join 5/8 in tubing with compression fittings. The fitting features a 0.81 in hex for tightening, a 13/16-18 thread, and a 150 psi pressure rating. It is rated for use between 65 and 250 deg F and is suitable for applications in plumbing, irrigation, HVAC, and water valves where SAE or compression tubing connections are required.

• Brass construction with compression connections on both ends for 5/8 in tubing
• Rated pressure 150 psi and temperature range 65 to 250 deg F; 0.81 in hex and 13/16-18 thread
• Compatible with copper, aluminum, and thermoplastic tubing; 1-1/4 in center-to-center

Product Highlights

Brass 5/8 in compression union; 150 psi; 65 to 250 deg F; 0.81 in hex; 13/16-18 thread

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18069
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Brand: Midland Metal
• MPN: 18069
• Type: Union
• Category: Brass Fittings
• Material: Brass
• Connection Type: Compression
• Connection Size: 5/8 in
• Thread: 13/16-18
• Hex Size: 0.81 in
• Pressure Rating: 150 psi
• Temperature Range: 65 to 250 deg F
• Center to Center: 1-1/4 in
• For Use With: Copper, aluminum and thermoplastic tubing
• Weight: 0.34 lb
• Package Quantity: 1
• Country of Origin: Taiwan, Province of China
• Also Known As: 62, 262, M-62
• Alternative Part Number: 00062-10
• SKU: 18069
