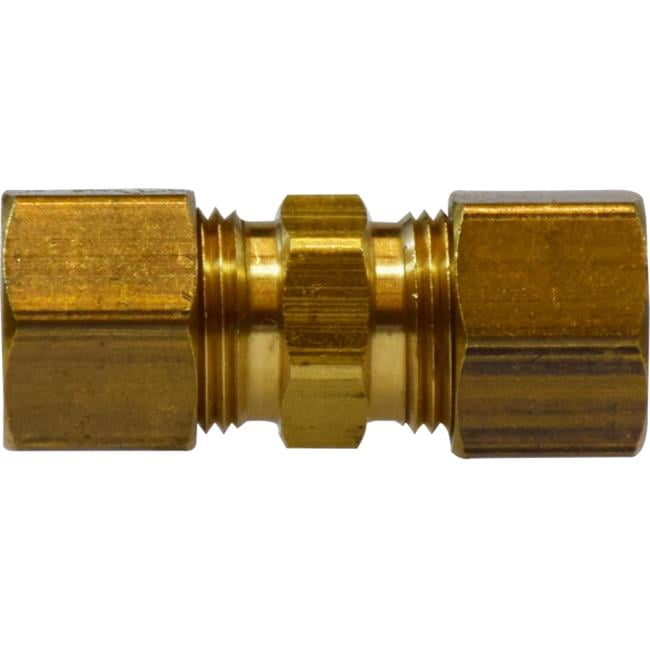

Midland Metal 18066 Compression Union (3/8 in)

Product Description

Midland Metal 18066 is a brass 3/8 in compression union for connecting copper, aluminum and thermoplastic tubing. It provides 3/8 in compression connections on both ends, a 9/16-24 thread, 0.56 in hex for tightening, and a 0.98 in center-to-center dimension. The fitting is rated for 200 psi working pressure and a temperature range of -65 to 250 deg F for water, irrigation, and general plumbing applications.

• Brass construction with 3/8 in compression connections on both ends
• 9/16-24 thread, 0.56 in hex, 0.98 in center-to-center
• Rated 200 psi working pressure and -65 to 250 deg F temperature range

Product Highlights

Brass 3/8 in compression union; 9/16-24 thread; 200 psi; -65 to 250 deg F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18066

Technical Specifications

• Brand: Midland Metal
• MPN: 18066
• Product Type: Compression union
• Fitting Type: Union
• Connection Type: Compression (both ends)
• Connection Size: 3/8 in (both ends)
• Material: Brass
• Thread Size: 9/16-24
• Hex Size: 0.56 in
• Center-to-Center: 0.98 in
• Working Pressure: 200 psi
• Temperature Range: -65 to 250 deg F
• For Use With: Copper, aluminum and thermoplastic tubing
• Category: Brass fittings
• Standard: SAE compression
