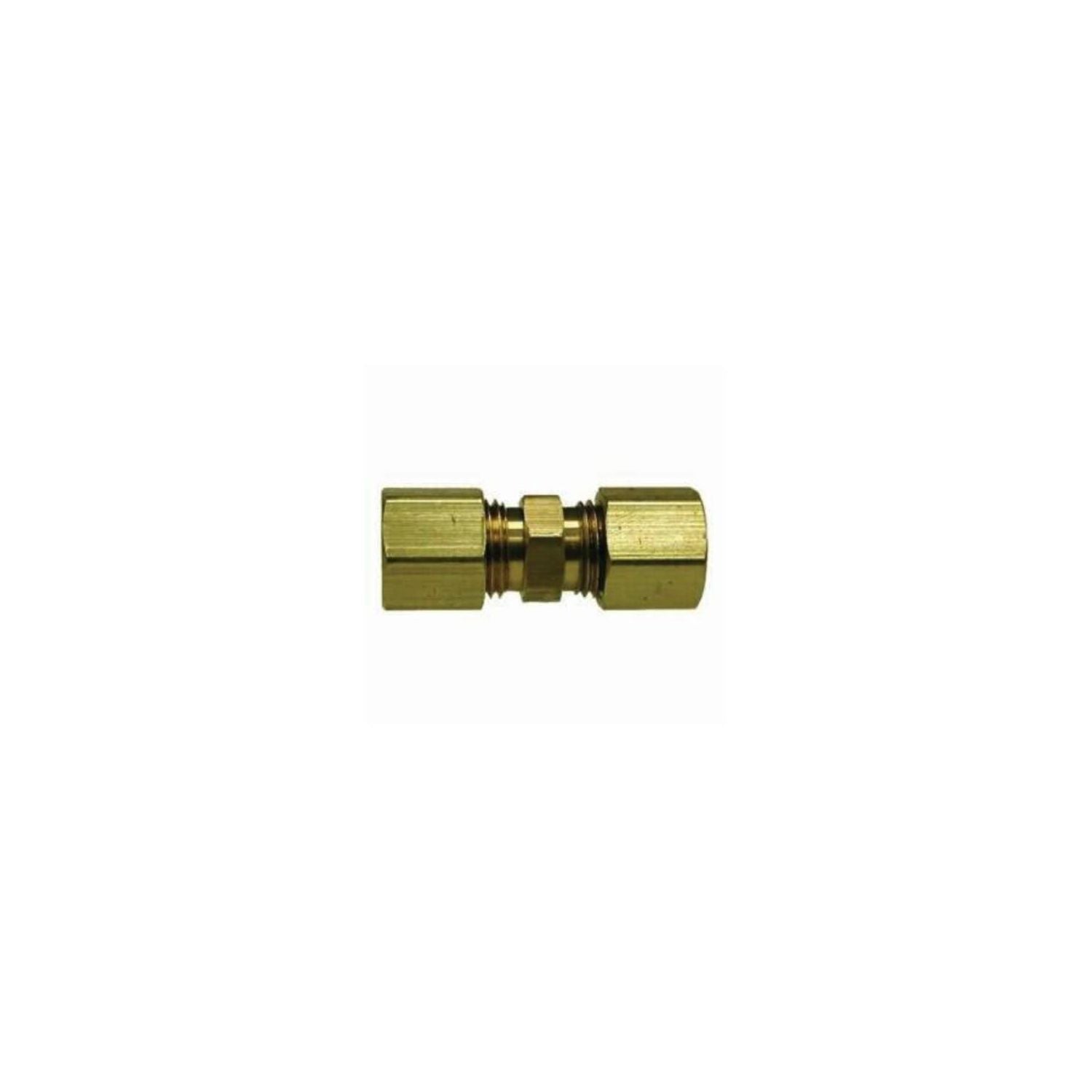

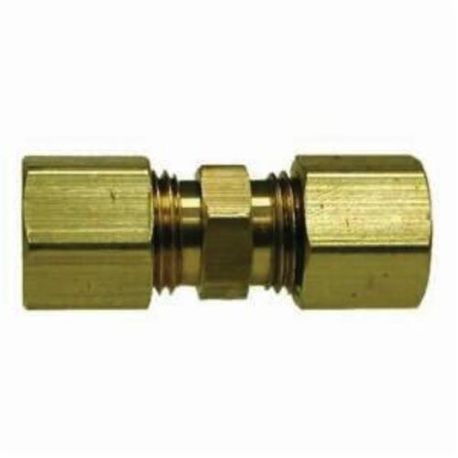

Midland Metal 18062 Compression Union 1/8 in (18-062)

Product Description

Midland Metal 18062 is a brass 1/8 in compression union used to join copper, aluminum, and thermoplastic tubing. The fitting features a 5/16-24 thread, 0.31 in hex, and 0.64 in center-to-center dimension. It is rated to 400 psi and operates from -65 to 250 deg F, providing a compact union connection for fluid or pneumatic tubing systems requiring compression fittings.

• Brass compression union compatible with copper, aluminum, and thermoplastic tubing; nominal size 1/8 in.
• Pressure rating 400 psi and temperature range -65 to 250 deg F; thread size 5/16-24.
• Dimensions: 0.31 in hex, 0.64 in center-to-center; weight approximately 0.030 lb.

Product Highlights

Brass 1/8 in compression union, 5/16-24 thread, 400 psi, -65 to 250 deg F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18062

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 18062
• Also Known As: 18-062; 00062-02; 11032; 162200; 262X2; 50915K131; 62-2; 622; 62A-22; 62C-2; 62x2; 862-2; 8622; C62-2; S62-2
• Manufacturer: Midland Metal Manufacturing
• Category: Brass Fittings
• Type: Union
• Fitting Type: Compression Union
• Material: Brass
• Connection Type 1: Compression
• Connection Type 2: Compression
• Connection Size 1: 1/8 in
• Connection Size 2: 1/8 in
• Nominal Size: 1/8 in
• Thread Size: 5/16-24
• Hex Size: 0.31 in
• Center to Center (A): 0.64 in
• Pressure Rating: 400 psi
• Temperature Rating: -65 to 250 deg F
• For Use With: Copper; Aluminum; Thermoplastic tubing
• Weight: 0.030 lb
• UPC: 642688180621
