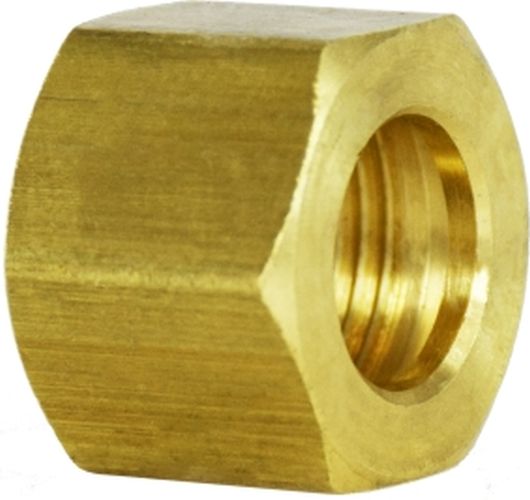

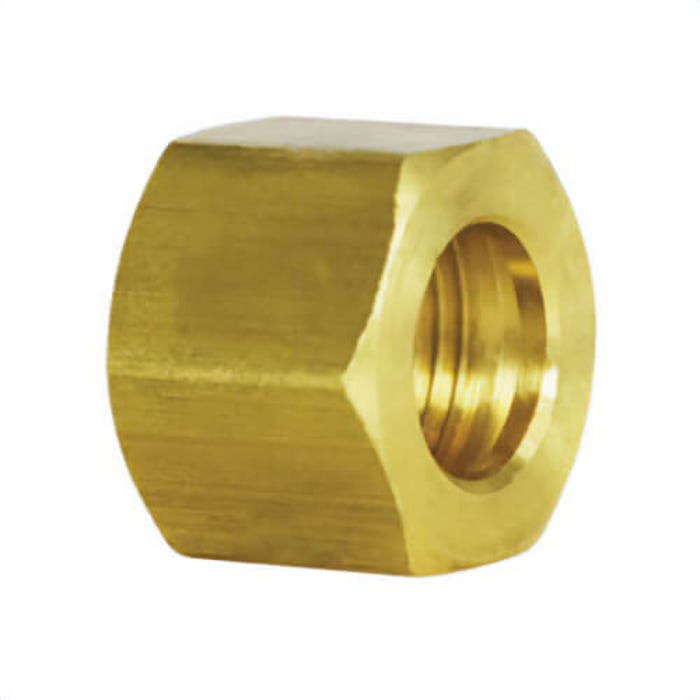

Midland Metal 18037 3/8 Compression Nut (3/8 in)

Product Description

Midland Metal 18037 is a brass compression nut designed for 3/8 in tubing and compatible with brass, copper, aluminum and thermoplastic tubing. The fitting is brass construction with a 9/16-24 thread, 0.62 in hex and 0.47 in length. It is rated to 200 psi and to operate between -65 to 250 deg F, and is intended for low- to medium-pressure plumbing, hydraulic and pneumatic tubing connections.

• Brass compression nut for 3/8 in tubing with 9/16-24 thread
• Rated 200 psi working pressure and -65 to 250 deg F temperature range
• Dimensions: 0.62 in hex, 0.47 in length; weight approximately 0.040 lb

Product Highlights

Brass 3/8 in compression nut; 9/16-24 thread; 200 psi; -65 to 250 deg F

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18037

Technical Specifications

• Brand: Midland Metal
• Manufacturer Part Number: 18037
• Type: Compression tube nut
• Category: Brass Fittings
• Size: 3/8 in
• Connection Type: Compression
• Connection Size: 3/8 in
• Thread Size: 9/16-24
• Material: Brass
• For Use With: Brass; Copper; Aluminum; Thermoplastic Tubing
• Pressure Rating: 200 psi
• Temperature Rating: -65 to 250 deg F
• Hex Size: 0.62 in
• Length: 0.47 in
• Weight: 0.040 lb
• Tolerance: +/-0.02 in on all dimensions
• Standards/Approvals: ASA, ASME, SAE 060110
• Nominal Size: 3/8 in
• Item Number: 18037
