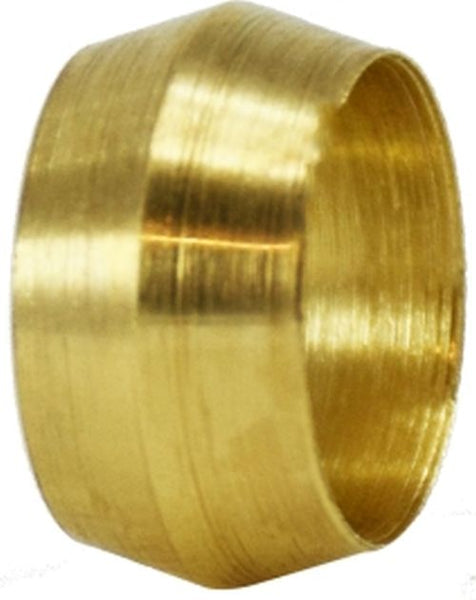

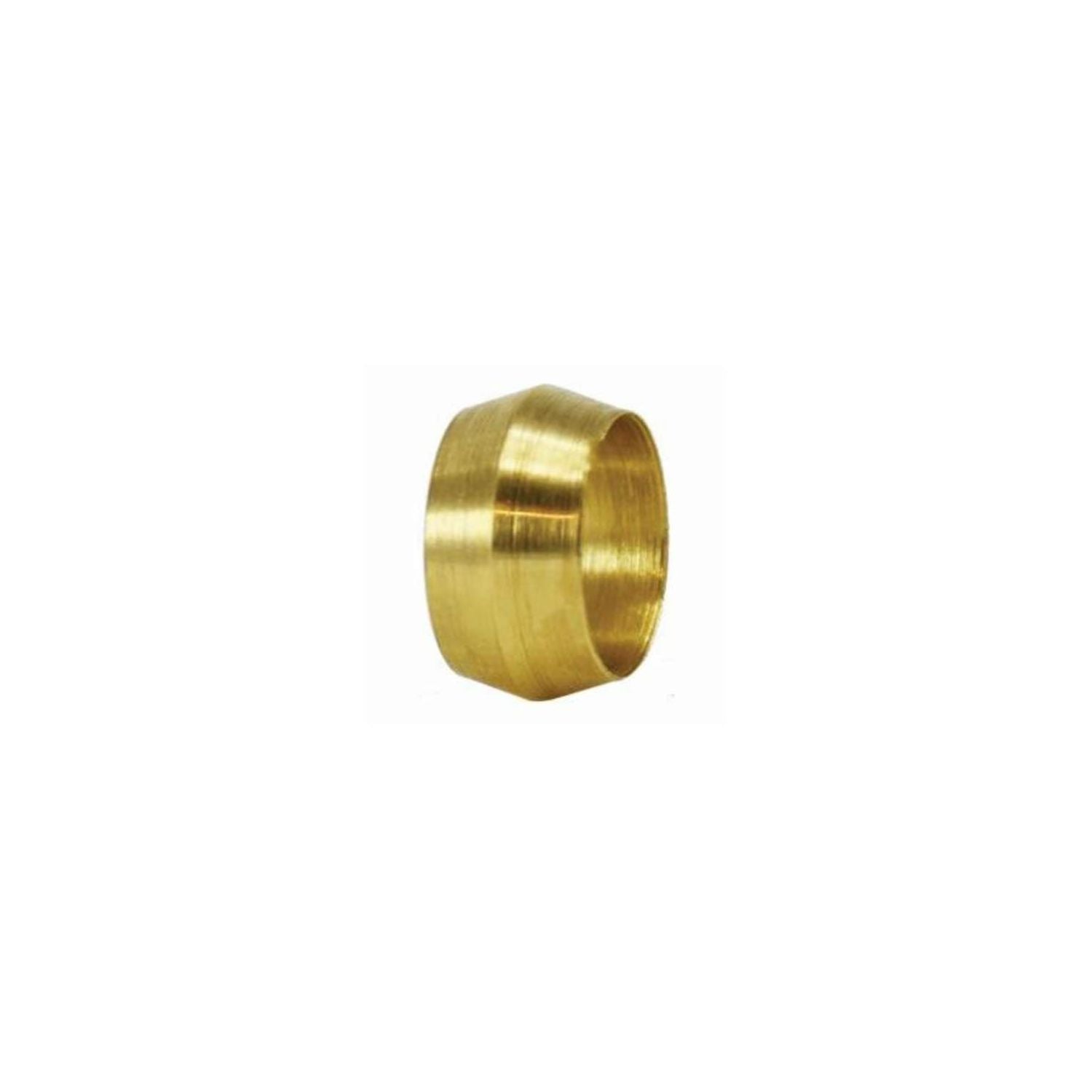

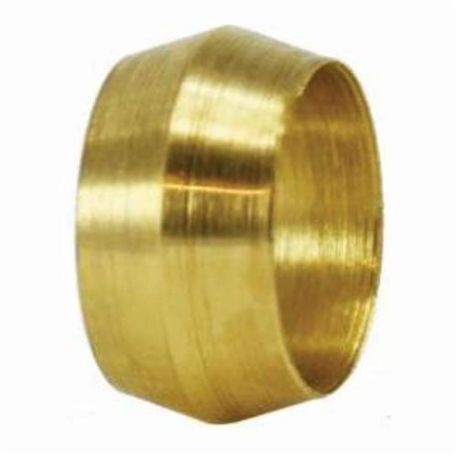

Midland Metal 18007 Ferrule Tube Sleeve 1/2 in Compression

Product Description

The Midland Metal 18007 is a brass ferrule tube sleeve designed for 1/2 inch compression fittings. It functions as a compression ferrule to form a mechanical, leak-resistant seal for tubing and hose connections, compatible with aluminum, copper, brass and plastic tubing. The sleeve measures approximately 0.38 in long by 0.59 in wide and is rated to 200 psi with an operating temperature range of -65 to 250 deg F. The brass construction provides corrosion resistance and mechanical strength.

• Brass ferrule sleeve for 1/2 in compression fittings
• Dimensions: 0.38 in length x 0.59 in width; weight 0.020 lb
• Rated to 200 psi; temperature range -65 to 250 deg F; compatible with aluminum, copper, brass and plastic tubing

Product Highlights

Brass compression ferrule for 1/2 in tubing; 0.38 in L x 0.59 in W; 200 psi pressure rating; -65 to 250 deg F temperature range.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 18007

Technical Specifications

• Brand: Midland Metal
• Manufacturer: Midland Metal (MMM)
• MPN: 18007
• Item Number: 2096097
• Product Type: Ferrule tube sleeve
• Material: Brass
• Nominal Size: 1/2 in
• Connection Type: Compression
• Dimensions: 0.38 in L x 0.59 in W
• Pressure Rating: 200 psi
• Temperature Range: -65 to 250 deg F
• Compatible Tubing: Aluminum, Copper, Brass, Plastic
• Weight: 0.020 lb
