Midland Metal 10262L Tube Adapter 3/8 x 1/8 45deg Flare- Tube To Mpt

Product Description

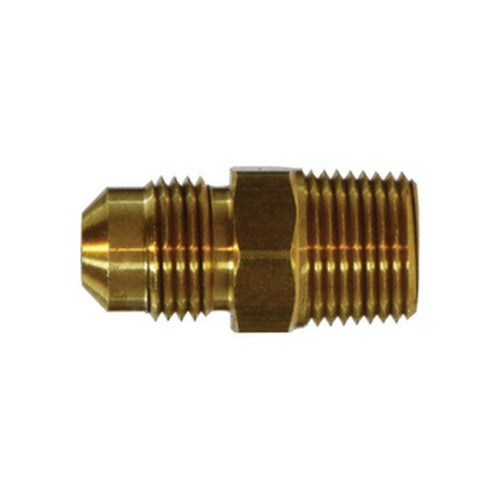

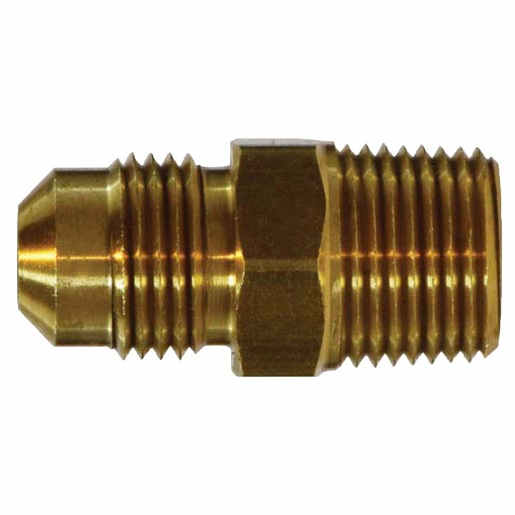

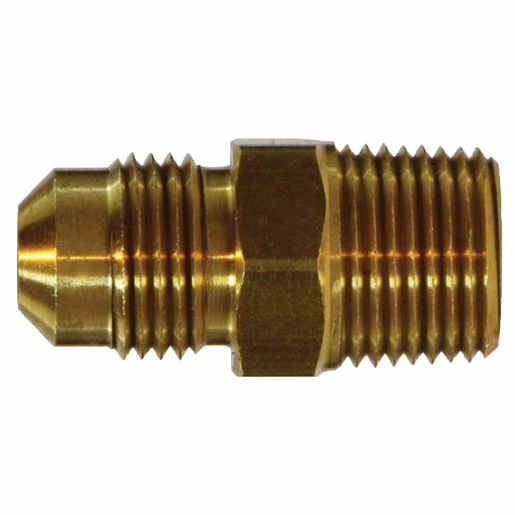

The MIDLAND METAL 10262L Tube Adapter is a straight flared fitting designed for tube-to-pipe connections. Constructed from brass, it features a 3/8 inch 45 degree Male SAE connection and a 1/8 inch MNPTF connection. This adapter is suitable for use with copper, brass, aluminum, and steel hydraulic tubing in plumbing and light industrial applications. It can withstand a maximum operating pressure of 1000 PSI and operates within a temperature range of -65 to 250 degrees F.

• Straight fitting type for tube-to-pipe connections.
• Features a 3/8 inch 45 degree Male SAE and 1/8 inch MNPTF connection.
• Constructed from brass, rated for 1000 PSI and -65 to 250 degrees F.

Product Highlights

Brass tube adapter for hydraulic tubing, featuring 3/8 inch Male SAE to 1/8 inch MNPTF connections.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 10262L

Technical Specifications

• Category: Flared Fittings
• Brand: MIDLAND METAL
• Manufacturer Name: MIDLAND INDUSTRIES
• Product Name: Flared Fitting
• Fitting Type: Straight
• Fitting Style: Tube To Pipe
• Connection 1 Size: 3/8 Inch
• Connection 1 Type: 45 Deg Male SAE
• Connection 2 Size: 1/8 Inch
• Connection 2 Type: MNPTF
• Material: Brass
• Maximum Operating Pressure: 1000 PSI
• Operating Temperature Range: -65 To 250 Deg F
• Measurement System: Inch
• Product Group: F02172
• Type: Male Adapter
• Thread: 5/8-18 x 1/8-27
• For Use With: Copper, Brass, Aluminum and Steel Hydraulic Tubing
• Part Number: 10262L
• BDI Number: 26011854
