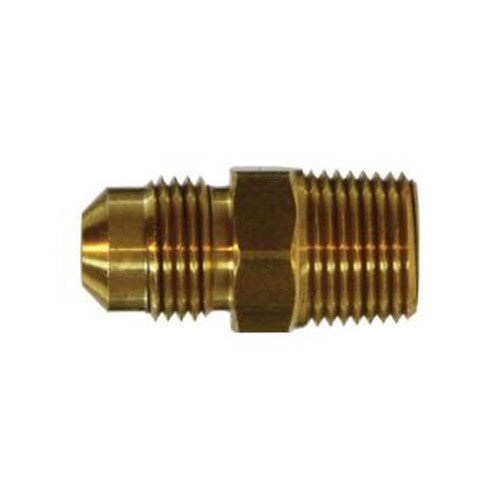

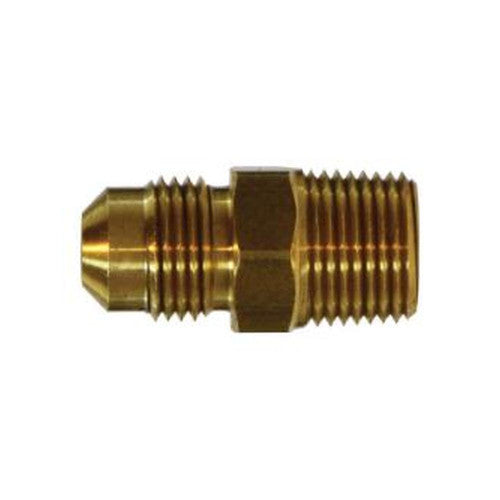

Midland Metal 10253 SAE 45 degree flare fitting adapter 1/8 inch male SAE 45 degree flare x 1/8 inch male NPTF

Product Description

The MIDLAND METAL 10253 is an SAE 45 degree flare fitting adapter, featuring a 1/8 inch male SAE 45 degree flare and a 1/8 inch male NPTF connection. Constructed from brass, this adapter is designed for use in LP and natural gas, flammable liquids, instrumentation, refrigeration, power steering, hydraulic, and pneumatic systems. It is compatible with copper, brass, aluminum, and steel hydraulic tubing that can be flared, operating effectively within a temperature range of -65°F to +250°F and a pressure rating of 2800 psi.

• Suitable for LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems.
• Compatible with Copper, Brass, Aluminum, and Steel hydraulic tubing that can be flared.
• Good resistance to vibration.

Product Highlights

Brass adapter meeting ASA, ASME, SAE, and Military Standards, offering good vibration resistance and a wide operating temperature range.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 10253

Technical Specifications

• Shape: Straight
• Connection Configuration: 1/8 inch Male SAE 45 Flare, 1/8 inch Male NPTF
• Material: Brass
• Applicable Standards: ASA, ASME, SAE, Military Standards
• Connection Size: 1/8 inch x 1/8 inch
• Length: 0.92 inches
• Hex Size: 0.43 inches
• SAE Rating: SAE# 010102
• Lead Free: No
• Tube Wall: 0.03 in
• Connection Type 1: Male Flared
• Connection Type 2: Male NPTF
• Fitting Type: Adapter
• Compatible Tubing: Copper, Brass, Aluminum, Steel Hydraulic Tubing
• Pressure Rating: 2800 psi
• Temperature Range: -65 to 250 deg F
• Thread Size: 5/16-24 x 1/8-27
• Category: Brass Fittings
• Product Type: Male Adapter
• Flare Section: SAE 45 Deg Flare
