Midland Metal 10236L Female Adapter 3/8 X 3/8 LP M Flare X FIP SAE 45 Degree Flare

Product Description

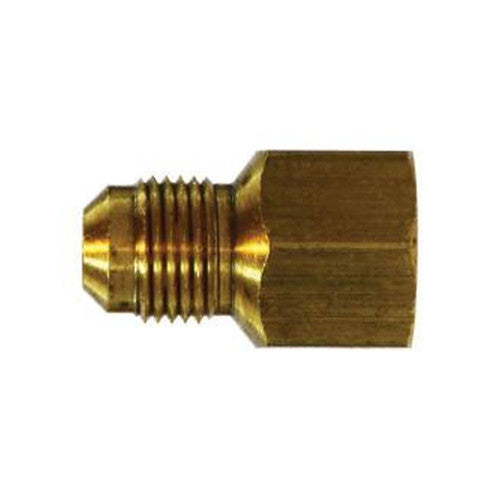

The MIDLAND METAL 10236L is a brass female adapter designed for SAE 45-degree flare connections. This fitting features a 3/8 inch male LP M flare on one end and a 3/8 inch female FIP connection on the other, making it suitable for various hydraulic tubing applications. It is constructed from durable brass and can withstand pressures up to 1000 psi, operating efficiently across a wide temperature range.

• Designed for SAE 45-degree flare connections, featuring a 3/8 inch male LP M flare and 3/8 inch female FIP connection.
• Constructed from brass, suitable for use with copper, brass, aluminum, and steel hydraulic tubing.
• Withstands pressure up to 1000 psi and operates within a temperature range of -65 to 250 degrees F.

Product Highlights

Brass female adapter for SAE 45-degree flare systems, ideal for hydraulic and pneumatic applications.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 10236L

Technical Specifications

• Category: Brass Fittings
• Connection Size 1: 3/8 in
• Connection Size 2: 3/8 in
• Connection Type 1: Male Flared
• Connection Type 2: FNPTF
• Fitting Type: Adapter
• Compatible Materials: Copper; Brass; Aluminum; Steel Hydraulic Tubing
• Hex Size: 0.81 in
• Material: Brass
• Pressure Rating: 1000 psi
• Flare Type: SAE 45 Deg Flare
• Shape: Straight/Connector
• Temperature Range: -65 to 250 deg F
• Thread Size: 5/8-18 x 3/8-18
• Standards: ASA, ASME, SAE, Military Standards
• SAE Rating: SAE# 010103
• Vibration Resistance: Good resistance - use long nut when greater vibration resistance is required.
• Lead Free Status: Not Lead Free
