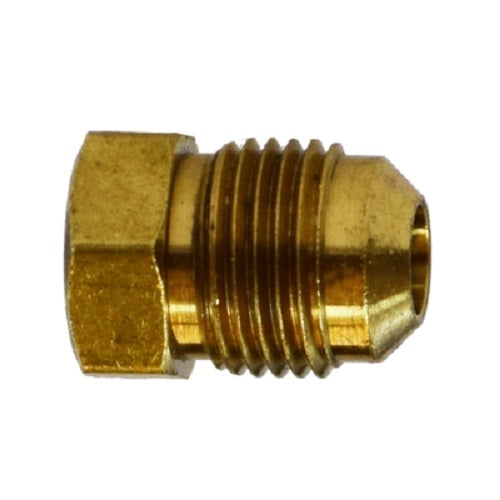

Midland Metal 10067 1/2 flare plug SAE 45 deg flare

Product Description

The Midland Metal 10067 is a 1/2 inch brass flare plug designed for SAE 45 degree flare applications. This fitting is suitable for use with aluminum, brass, copper, and steel hydraulic tubing that can be flared, as well as low-pressure air, fuel, lube, and oil lines. It features a 3/4-16 UNF thread size and a 3/4 inch hex size, with a pressure rating of 750 psi and an operating temperature range of -65 to 250 degrees F.

• Designed for SAE 45 degree flare applications.
• Compatible with aluminum, brass, copper, and steel hydraulic tubing.
• Constructed from brass with a 3/4-16 UNF thread and 3/4 inch hex size.

Product Highlights

This brass flare plug provides a secure seal for hydraulic and low-pressure lines, offering durability across a wide temperature range.

Product Information

Standard Information

• Brand: MIDLAND METAL
• Manufacturer Part Number: 10067

Technical Specifications

• MPN: 10067
• Brand: Midland Metal Mfg.
• Tube Wall Thickness: 0.032 in
• Category: Brass Fittings
• Connection Size: 1/2 in
• Connection Type: Flared
• Fitting Type: Plug
• Hex Size: 3/4 in
• Material: Brass
• Pressure Rating: 750 psi
• Flare Angle: SAE 45 Deg Flare
• Temperature Rating: -65 to 250 deg F
• Thread Size: 3/4-16 UNF
