Product Description

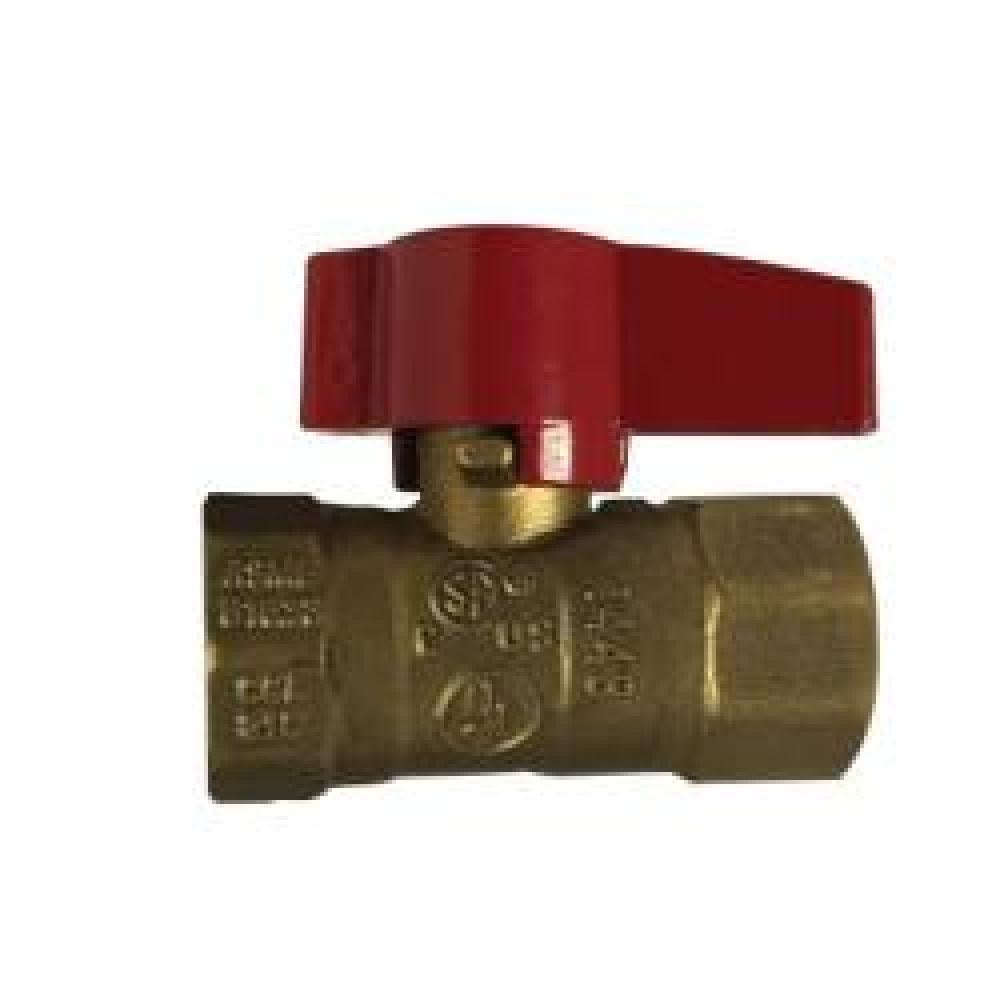

The MIDLAND INDUSTRIES 943311 is a 2-Piece Gas Ball Valve with a 3/8-in nominal size and FPT x FPT connection. It features a forged brass body and is designed for a pressure rating of 125 psi. The valve is equipped with a 1/4-Turn Reversible Butterfly Handle for easy operation.
- Nominal size: 3/8 in
- Connection Type: FPT x FPT
- Pressure Rating: 125 psi
Product Highlights
This gas ball valve is suitable for various applications requiring reliable gas flow control. It features a brass body and PTFE seals for durability and leak-free performance.
Product Information
Standard Information
-
Brand: MIDLAND INDUSTRIES
-
Manufacturer Part Number: 943311
-
Country of Origin: China
Technical Specifications
-
Brand: MIDLAND INDUSTRIES
-
Ball Material: Brass
-
Body Material: Forged Brass
-
Connection Type: FPT x FPT
-
Handle Material: Aluminum
-
Inlet to Outlet Length: 1.752 in
-
Lead-Free/Contains Lead: Contains Lead
-
Material Standard: C37700
-
Nominal Size: 3/8 in
-
Operator Type: 1/4-Turn Reversible Butterfly Handle
-
Packing Material: PTFE
-
Port Type: Regular
-
Pressure Rating: 125 psi
-
Seal Material: PTFE
-
Seat Material: PTFE
-
Stem Material: Brass
-
Temperature Rating: 32 to 149 °F
-
Thread Size: 3/8 - 18
-
Top to Inlet Center: 1.437 in
-
Trim Material: Brass Stem Packing Nut/Steel Screw/NBR O-Ring
-
Shape (Orientation): Straight
-
Ends Configuration: 3/8in Female NPT, 3/8in Female NPT, Some Ends Match
-
Material(s): Brass
-
Seal Material(s): NBR
-
Applicable Specs & Approvals: AGA 3.88, UL842, UL258, UL125, ASME B16.44/CR91, ANSI Z21.15/CSA9.1
