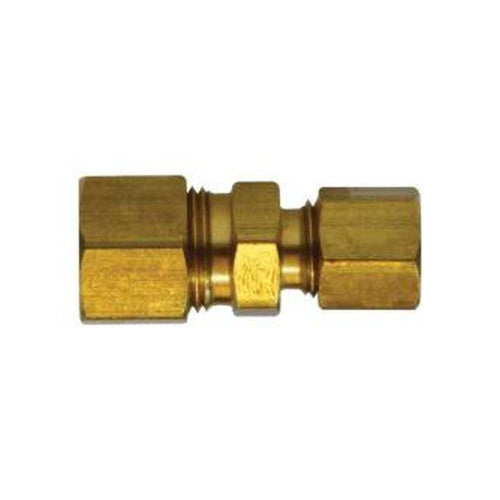

Midland Industries 700082-0604 3/8 inchesx 1/4 inches #62F Comp Union LF

Product Description

The MIDLAND INDUSTRIES 700082-0604 is a 3/8"x 1/4" #62F Comp Union LF, designed as a reducing union. This lead-free brass fitting is suitable for use with copper, aluminum, or plastic tubing in water, gasoline, oil, and vacuum lines. It features a three-piece construction for easy disassembly without requiring a flaring tool.

• Three piece construction- nut, sleeve (or ferrule) and body.
• Easy to disassemble, no flaring tool required.
• Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.

Product Highlights

Lead-free brass compression fitting for connecting different sized tubes in various applications.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 700082-0604

Technical Specifications

• Shape (Orientation): Straight
• Ends Configuration: 3/8in Tube Compression, 1/4in Tube Compression
• Material(s): Lead Free Brass
• Applicable Specs & Approvals: Lead Free as per the Safe Drinking Water Act
• Special Properties: Lead Free
• Applications: Water, Gasoline, Oil, and Vacuum Lines.
• Used With: Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert)
• Temperature Range: -40°F to +250°F
• Lead Free: Yes
• Connection Size 1: 3/8 in
• Connection Size 2: 1/4 in
• Connection Type: Compression
• Fitting Type: Union
• For Use With: Copper, Aluminum and Thermoplastic Tubing
• Hex Size: 0.56 in
• Material: Brass
• Material Construction: Brass
• Pressure Rating: 200 psi
• Temperature Rating: -65 to 250 deg F
• Thread Size: 9/16-24
