Midland Industries 700066-0404 1/4 inchesx 1/4 inches #66F COM x F AD LF

Product Description

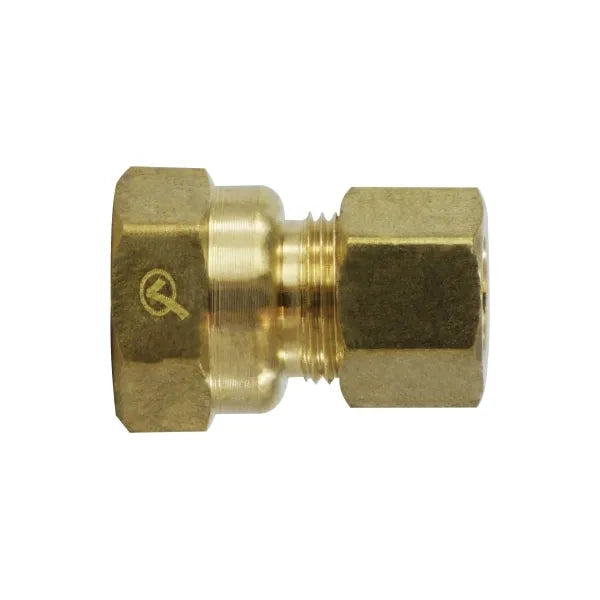

The MIDLAND INDUSTRIES 700066-0404 is a 1/4"x 1/4" #66F COM x F AD LF. This lead-free brass compression fitting is a female coupling suitable for water, gasoline, oil, and vacuum lines. It can be used with copper, aluminum, or plastic tubing, with a temperature range of -40°F to +250°F.

• Lead Free
• Three piece construction - nut, sleeve (or ferrule) and body.
• Easy to disassemble, no flaring tool required.

Product Highlights

Lead-free brass fitting with three-piece construction, suitable for various applications and easy disassembly.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 700066-0404

Technical Specifications

• Shape (Orientation): Straight
• Ends Configuration: 1/4in Tube Compression, 1/4in Female NPT
• Material(s): Lead Free Brass
• Applicable Specs & Approvals: Lead Free as per the Safe Drinking Water Act
• Special Properties: Lead Free
• SKU: 700066-0404
• Connection Size 1: 1/4 in
• Connection Size 2: 1/4 in
• Connection Type: Compression|FNPTF
• Connection Type 1: Compression
• Connection Type 2: Female NPTF
• Fitting Type: Coupling
• For Use With: Copper, Aluminum or Plastic Tubing
• Material: Brass
• Material Construction: Lead-Free Brass
• Temperature Rating: -40 to 250 deg F
• Thread Size: 7/16-24 x 1/4-18
• Thread Size 1: 7/16-24 UNF
• Thread Size 2: 1/4-18 NPTF
