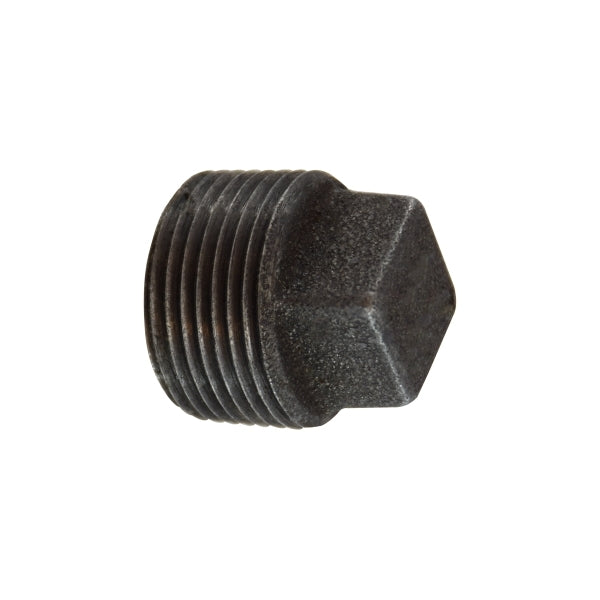

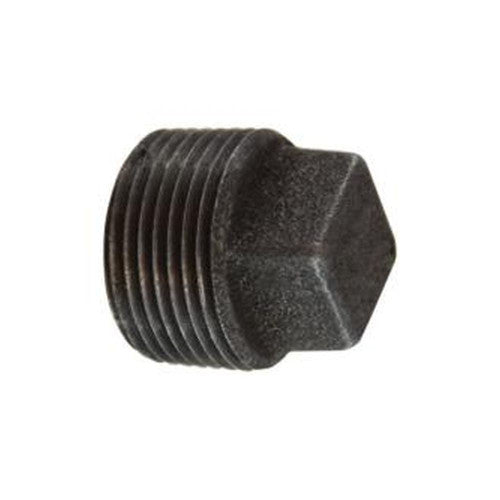

Midland Industries 65658 Malleable Iron #150 Fitting - Square Head Plug - Male NPT

Product Description

The Midland Industries 65658 is a malleable iron #150 fitting designed as a square head plug with a male NPT connection. This fitting is fully pressure tested to 300 pounds per square inch and passes an underwater fitness test to ensure quality and performance.

• Ends Configuration: 2 inches Male NPT
• Max Pressure: 300 PSI at 150 degrees Fahrenheit
• Temperature Range: -20 degrees Fahrenheit to 350 degrees Fahrenheit

Product Highlights

This fitting is made with improved molds for better fluid flow and has a durable low-temperature galvanizing coating for extended service life.

Product Information

Standard Information

• Material: Black Iron
• Applicable Standards: ASTM A 197, ASTM A 153, ASTM A 164 LS, ANSI B 16.3, ANSI B 16.14, ANSI B 16.39, RoHS Compliant

Technical Specifications

• Connection Size: 2 inches
• Connection Type: Male Pipe Thread (MPT)
• Shape: Plug
• Pressure Rating: 150 PSI
• Thread Size: 2-11/2
• Material Construction: Malleable Iron
