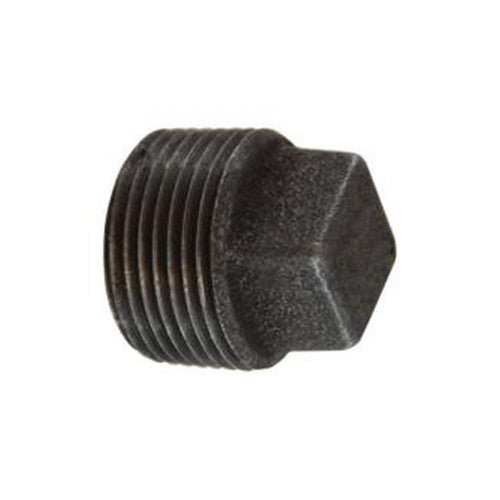

MIDLAND INDUSTRIES 65657 Malleable Iron #150 Fitting Square Head Plug 1-1/2 Male NPT

Product Description

The MIDLAND INDUSTRIES 65657 is a malleable iron #150 fitting square head plug with a one and one-half inch male NPT connection. This fitting is pressure tested to 300 pounds and is suitable for various applications. It meets ASTM A 197, ASTM A 153, and ANSI B 16.3 standards.

• Ends configuration is one and one-half inch male NPT.
• Pressure rating is 150 pounds.
• Durable coating due to low temperature galvanizing process.

Product Highlights

This fitting has improved molds which reduce parting lines. It allows for better fluid flow and is suitable for saturated steam pressure.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• MPN: 65657

Technical Specifications

• Material: Black Iron
• Pressure Rating: 150 lb
• Temperature Rating: -20 to 350 deg F
• Pressure Tested: 300 lb class
• Connection Type: NPT
• Shape: Plug
• Dimension Standards: ANSI B16.3, ANSI B2.1 or BS 21, ASME B1.20.1
• Dimensions: 1.46 in length
