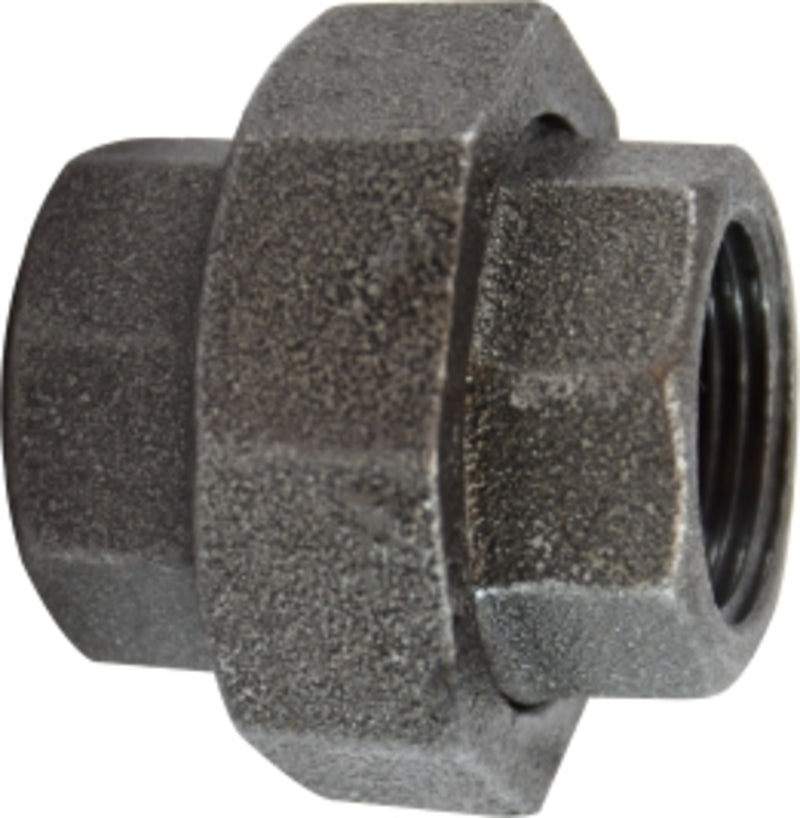

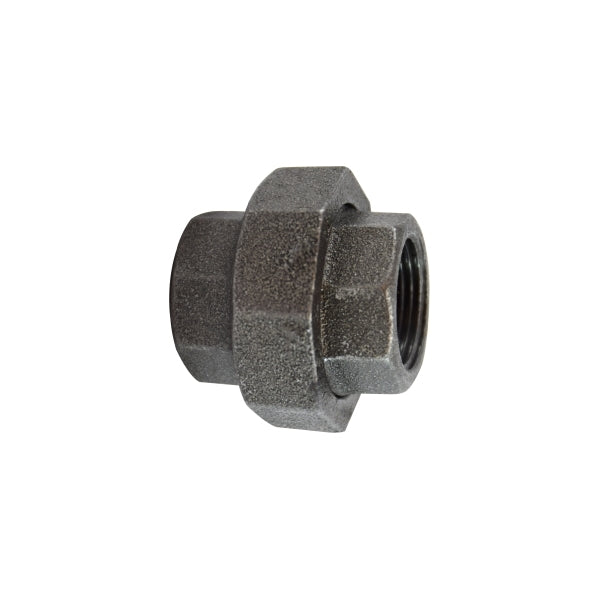

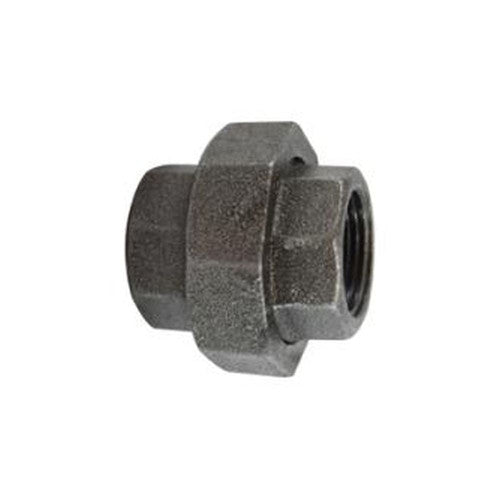

Midland Industries 65603 Union 1/2 Female NPT x 1/2 Female NPT

Product Description

The Midland Industries 65603 is a union fitting made from malleable iron. It features two 1/2 inch female NPT connections, providing versatility in plumbing applications. The fitting is designed for high pressure and temperature resistance.

• Fabricated from durable black iron material.
• Pressure tested to 300 PSI at 150 degrees Fahrenheit.
• Suitable for temperature ranges from -20 degrees Fahrenheit to 350 degrees Fahrenheit.

Product Highlights

The Midland Industries 65603 provides reliable connections in fresh water systems, heating systems, and gas line applications.

Product Information

Standard Information

• Shape (Orientation): Straight
• Fitting Type: Union

Technical Specifications

• Ends Configuration: 1/2 inch Female NPT on both ends
• Material(s): Black Iron
• Applicable Specs & Approvals: ASTM A 197, ASTM A 153, ANSI B 16.3, ANSI B 16.14, ANSI B 16.39, RoHS Compliant
• Pressure Rating: 150 lb
• Temperature Rating: -20 to 350 degrees Fahrenheit
• Connection Type: FPT
• Finish: Black
• Weight: 0.52
• Dimensions: 1.72 inches in length
