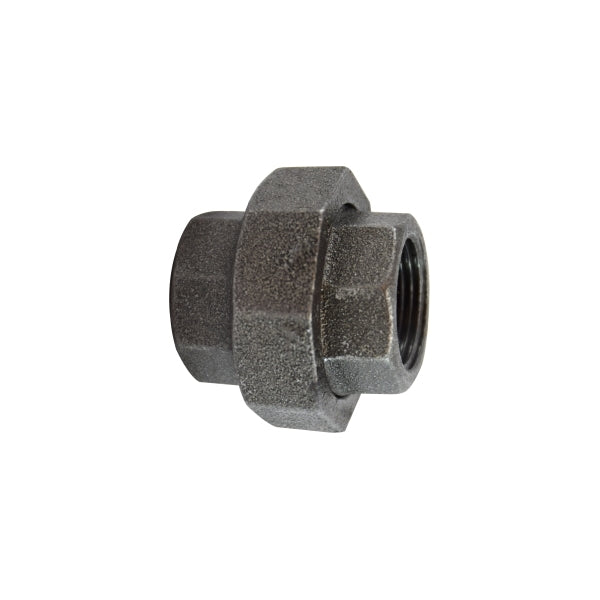

MIDLAND INDUSTRIES 65601 Malleable Iron Fitting Union 150 lb 1/4 in Female NPT

Product Description

The MIDLAND INDUSTRIES 65601 is a malleable iron fitting union with 1/4 in female NPT connections on both ends. This fitting is durable and suitable for various applications due to its high pressure rating and robust construction.

• Constructed from black iron for strength.
• Pressure tested to 300 PSI for reliable performance.
• Brass seat for improved sealing capabilities.

Product Highlights

Designed for demanding environments, this fitting can handle saturated steam pressure up to 150 PSI at 350 degrees Fahrenheit.

Product Information

Standard Information

• Material: Malleable Iron
• Shape: Union

Technical Specifications

• Ends Configuration: 1/4 in Female NPT, 1/4 in Female NPT
• Pressure Rating: 150 lb
• Maximum Pressure: 300 PSI @ 150 degrees F
• Temperature Rating: -20 to 350 degrees F
• Dimensions: 1.44 in L
• Applicable Specs: ASTM A 197, ASTM A 153, ASTM A 164 LS, ANSI B 16.3, ANSI B 16.14, ANSI B 16.39, RoHS Compliant
