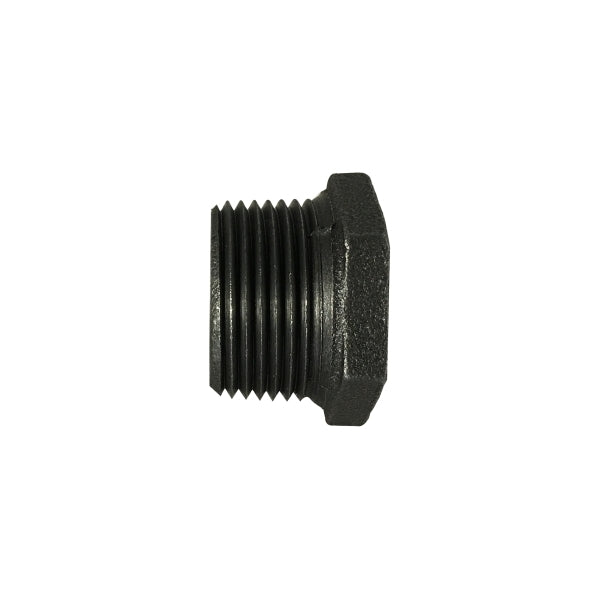

Midland Industries 65502 Hex Bushing Male NPT x Female NPT

Product Description

The Midland Industries 65502 is a malleable iron hex bushing designed for connecting a 3/8 inch male NPT to a 1/4 inch female NPT. This fitting is rigorously pressure tested to a class of 300#, ensuring a reliable seal. It is capable of operating within a temperature range from minus twenty degrees Fahrenheit to three hundred fifty degrees Fahrenheit. The product adheres to ASTM A197 and ANSI B16.3 standards.

• Made from durable black malleable iron.
• Pressure tested at 150 PSI at three hundred fifty degrees Fahrenheit.
• Characterized by low temperature galvanizing for corrosion resistance.

Product Highlights

This hex bushing is an essential component in various plumbing and HVAC systems.

Product Information

Standard Information

• Brand: Midland Industries
• MPN: 65502

Technical Specifications

• Shape (Orientation): Straight
• Ends Configuration: 3/8 inch Male NPT, 1/4 inch Female NPT
• Material(s): Black Iron
• Applicable Specs & Approvals: ASTM A 197, ASTM A 153, ASTM A 164 LS, ANSI B 16.3, ANSI B 16.14, ANSI B 16.39, RoHS Compliant
• Category: Nipples and Fittings
• Connection Type: MPT/FPT
• Dimensions: 0.79 inches long
• Fitting Type: Bushing
• Pressure Rating: 150 PSI
• Temperature Rating: -20 to 350 degrees F
• Hex Size: 3/4 inches
• Thread Size: 3/8-18
