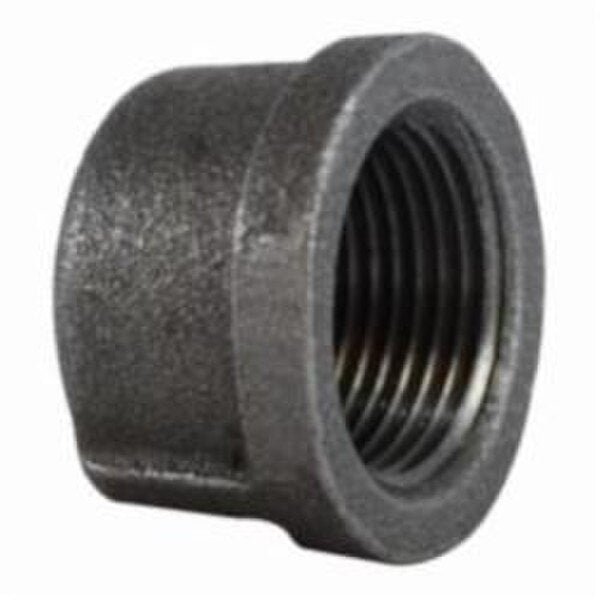

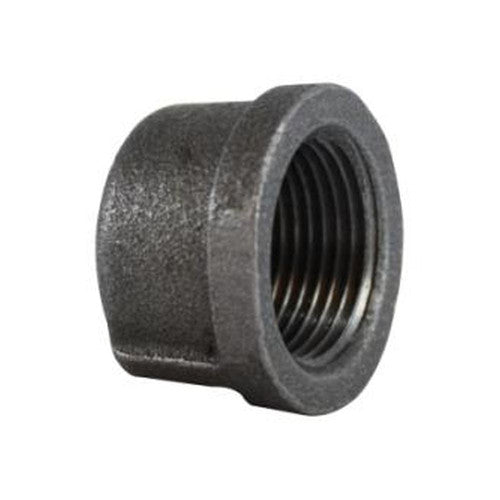

MIDLAND INDUSTRIES 65473 Cap 1/2 Female NPT #150 Fitting

Product Description

The MIDLAND INDUSTRIES 65473 is a malleable iron fitting designed for plumbing applications. It features a 1/2 inch female NPT connection and is pressure tested to meet strict quality standards.

• Pressure tested to 300 PSI
• Constructed from durable black iron
• Compatible with various plumbing systems

Product Highlights

This cap fitting is suitable for general piping needs and is designed to handle high pressure and temperature.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• MPN: 65473

Technical Specifications

• Ends Configuration: 1/2 inch Female NPT
• Material: Black Iron
• Applicable Specs & Approvals: ASTM A 197, ASTM A 153, ASTM A 164 LS, ANSI B 16.3, ANSI B 16.14, ANSI B 16.39, RoHS Compliant
• Saturated Steam Pressure: 150 PSI @ 350°F
• Max Pressure: 300 PSI @ 150°F
• Temperature Range: -20°F to 350°F
• Connection Size: 1/2 inch
• Connection Type: FPT
• Dimension Standards: ANSI B 16.3
• Dimensions: 0.87 inch L
• Fitting Type: Cap
• Material Construction: Malleable Iron
• Pressure Class: 150 lb
• Temperature Rating: -20 to 350 degrees Fahrenheit
• Thread Size: 1/2-14
