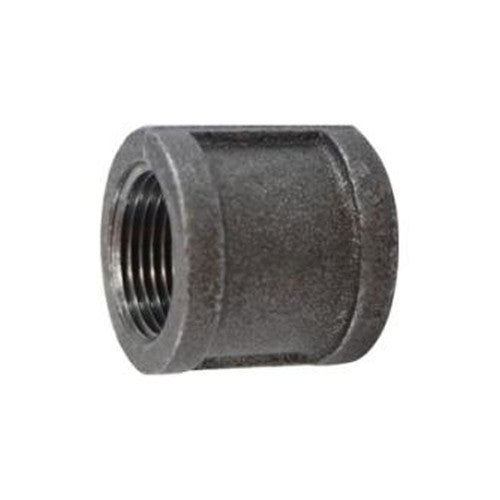

Midland Industries 65418 Malleable Iron #150 Fitting Coupling 2 inch Female NPT x 2 inch Female NPT

Product Description

The Midland Industries 65418 is a malleable iron fitting coupling designed for 2 inch Female NPT connections. This product is pressure tested to 300# Class and meets rigorous underwater fitness testing standards. It is appropriate for use with saturated steam pressures up to 150 PSI at three hundred fifty degrees Fahrenheit and can handle maximum pressures of up to 300 PSI at one hundred fifty degrees Fahrenheit.

• Manufactured from durable black iron.
• Complies with various ASTM standards and is RoHS compliant.
• Versatile temperature range: negative twenty degrees Fahrenheit to three hundred fifty degrees Fahrenheit.

Product Highlights

The use of improved molds ensures fewer parting lines, enhancing fluid flow performance. A low temperature galvanizing process makes the coating robust and extends the lifespan of the fitting.

Product Information

Standard Information

• Shape: Straight
• Ends Configuration: 2 inch Female NPT x 2 inch Female NPT

Technical Specifications

• Material: Black Iron
• Applicable Specs: ASTM A 197, ASTM A 153, ANSI B 16.3, ANSI B 16.14, ANSI B 16.39, RoHS Compliant
• Temperature Range: -20 degrees Fahrenheit to 350 degrees Fahrenheit
• Saturated Steam Pressure: 150 PSI at 350 degrees Fahrenheit
• Max Pressure: 300 PSI at 150 degrees Fahrenheit
• Connector Type: Coupling
• Thread Size: 2-11-1/2
• Finish: Black
• Fitting Type: Coupling
• Pressure Class: 150 lb
