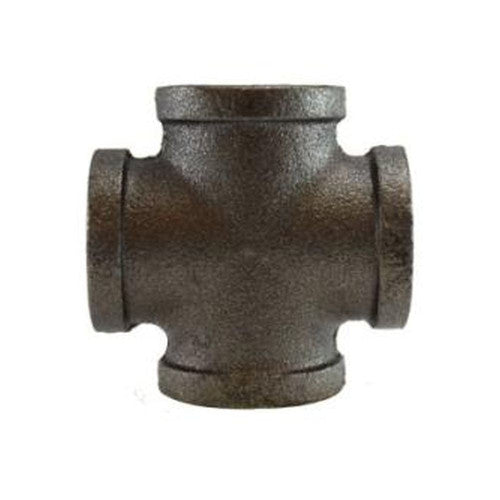

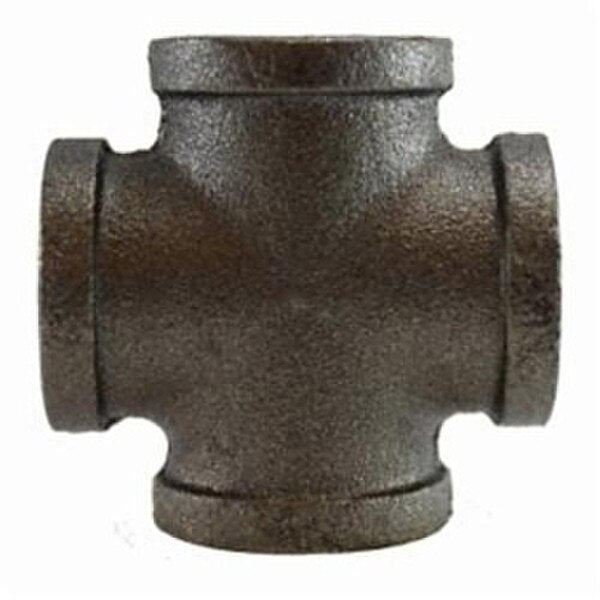

Midland Industries 65391 Cross 1/4 Female NPT Fitting

Product Description

The Midland Industries 65391 is a cross fitting made from malleable iron. It features 1/4 inch female NPT connections. This fitting is designed for various piping applications and is pressure tested to ensure reliability. It is suitable for temperatures ranging from negative twenty degrees Fahrenheit to three hundred fifty degrees Fahrenheit.

• Shape: Cross
• Material: Malleable Iron
• Pressure Rating: 300 PSI

Product Highlights

This fitting is excellent for plumbing and HVAC systems. It provides strong connections while ensuring fluid flows smoothly. Its durable coating withstands harsh conditions.

Product Information

Standard Information

• Brand: Midland Industries
• MPN: 65391

Technical Specifications

• Shape (Orientation): Cross
• Ends Configuration: 1/4 inch Female NPT (four connections)
• Material(s): Black Iron
• Applicable Specs & Approvals: ASTM A 197, ASTM A 153, ASTM A 164 LS, ANSI B 16.3, ANSI B 16.14, ANSI B 16.39, RoHS Compliant
• Saturated Steam Pressure: 150 PSI @ 350°F
• Max Pressure: 300 PSI @ 150°F
• Temp Range: -20°F to 350°F
• Center to End: 0.8 in
• Dimensions: 1.6 in Length
• Fitting Type: Cross
• Thread Size: 1/4-18
