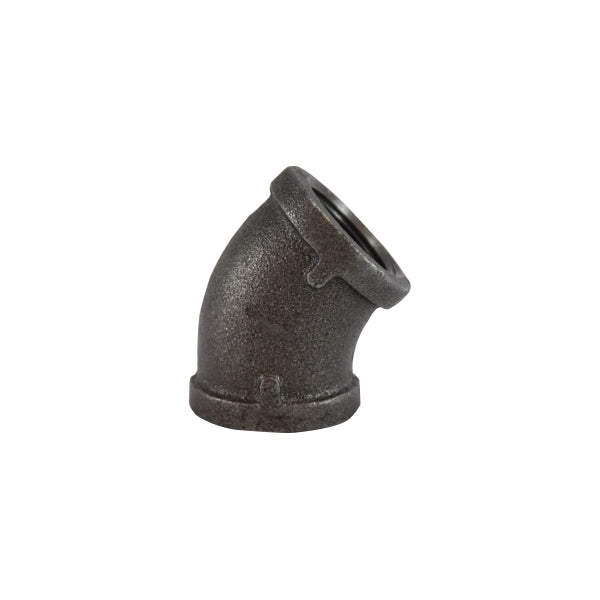

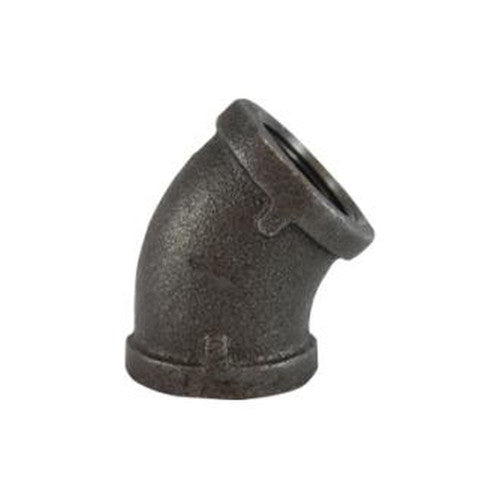

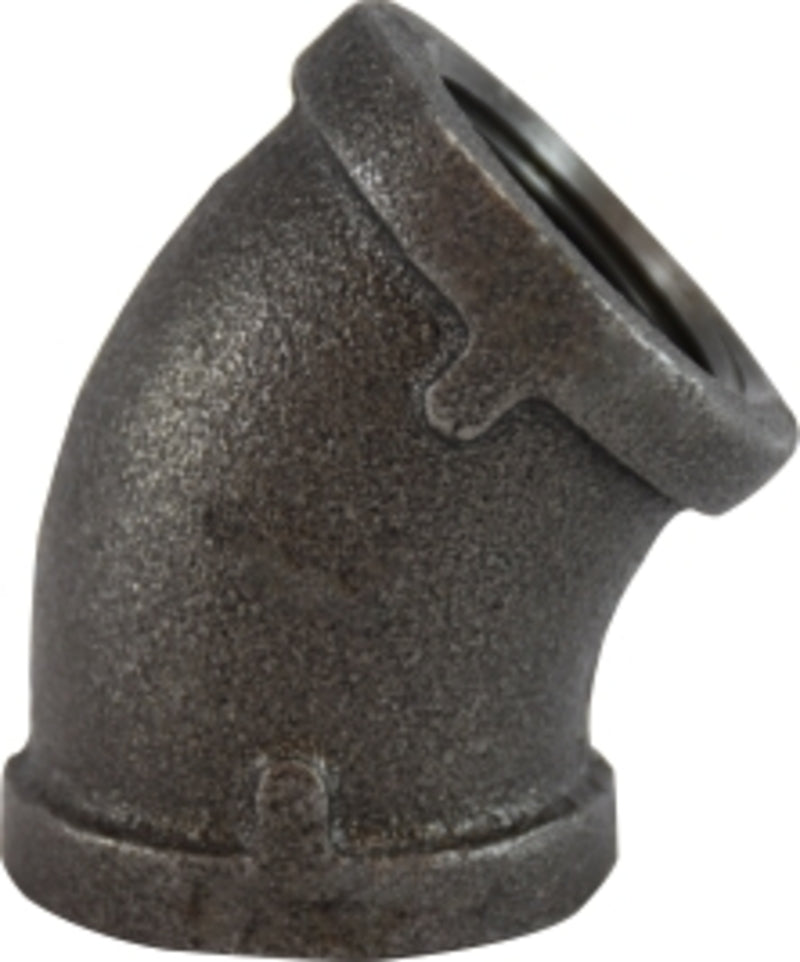

MIDLAND INDUSTRIES 65183 Malleable Iron #150 Fitting 45 Degree Elbow

Product Description

The MIDLAND INDUSTRIES 65183 is a malleable iron fitting designed for plumbing and pipe applications. This fitting is a 45-degree elbow with one half-inch female NPT connection on each end. It has passed 100% pressure tests to ensure reliability. The fitting is suitable for various plumbing needs.

• Pressure tested to 300# class
• Low temperature galvanizing for durability
• Ideal for fluid flow with better molds

Product Highlights

This elbow fitting features a strong construction with enhanced fluid flow capabilities.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• MPN: 65183

Technical Specifications

• Shape (Orientation): 45 Degree
• Ends Configuration: 1/2 inch Female NPT, 1/2 inch Female NPT
• Material(s): Black Iron
• Applicable Specs & Approvals: ASTM A 197, ASTM A 153, ASTM A164 LS, ANSI B 16.3, ANSI B 16.14, ANSI B 16.39, RoHS Compliant
• Center to End: 0.8 inches
• Connection Type: FPT
• Dimension Standards: ANSI B 16.3
• Finish: Black
• Fitting Type: 45 deg Elbow
• Pressure Class: 150 lb
• Temperature Rating: -20 to 350 degrees F
• Thread Size: 1/2-14
