MIDLAND INDUSTRIES 65181 45 Degree Elbow 1/4 Female NPT x 1/4 Female NPT

Product Description

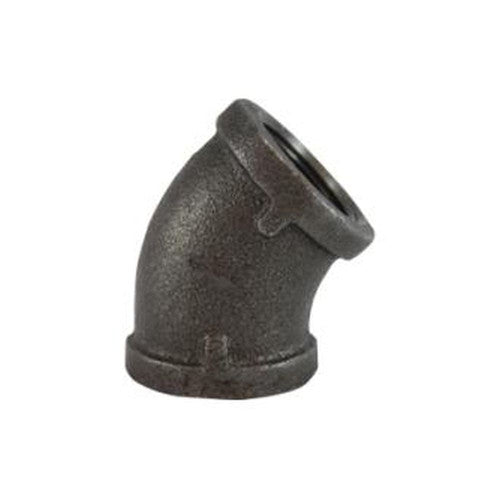

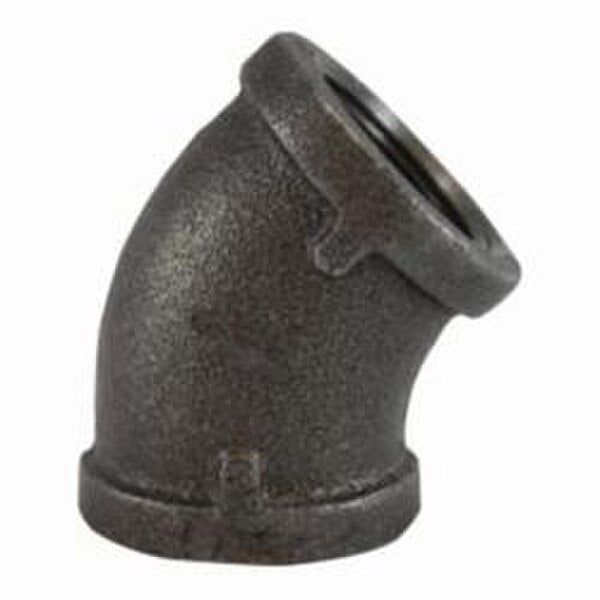

The MIDLAND INDUSTRIES 65181 is a malleable iron fitting designed as a 45 degree elbow with 1/4 inch female NPT threads on both ends. This elbow is suitable for various piping applications, providing essential connections that allow for directional changes in fluid flow.

• All fittings are pressure tested to 300# Class standards.
• Temperature range suitable from -20 degrees Fahrenheit to 350 degrees Fahrenheit.
• Durably constructed with low temperature galvanizing for increased longevity.

Product Highlights

This fitting provides reliable performance in both hot and cold applications, ensuring efficiency in your plumbing or HVAC projects.

Product Information

Standard Information

• Material: Black Iron
• Fitting Type: 45 degree elbow

Technical Specifications

• Pressure Class: 150 lb
• Temperature Rating: -20 to 350 degrees F
• Connection Size 1: 1/4 inch
• Connection Size 2: 1/4 inch
• Connection Type: FPT
• Finish: Black
• Center to End: 0.63 inches
• Specifications Compliance: ASTM A 197, ASTM A 153, ANSI B 16.3, ANSI B 16.14, ANSI B 16.39, RoHS Compliant
