MIDLAND INDUSTRIES 65103 Malleable Iron #150 Fitting 1/2 Female NPT x 1/2 Female NPT 90 Degree Elbow

Product Description

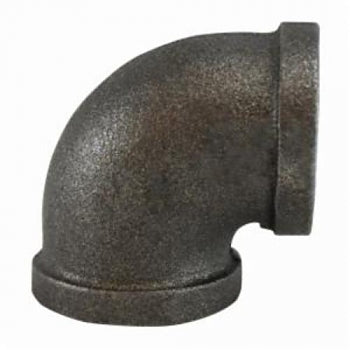

The Midland Industries 65103 is a malleable iron fitting designed for reliable fluid flow in piping systems. This product features a 90 degree elbow shape with 1/2 inch female NPT connections on both ends. Each fitting undergoes rigorous testing to ensure it meets pressure standards of 300 psi. This elbow is suitable for saturated steam applications up to 150 PSI at 350 degrees Fahrenheit.

• Made from malleable iron for durability.
• Meets ANSI B 16.3 standards for dimensional accuracy.
• RoHS compliant for environmental safety.

Product Highlights

Product Information

Standard Information

• Brand: Midland Industries
• MPN: 65103

Technical Specifications

• Shape (Orientation): 90 Degree
• Ends Configuration: 1/2 inch Female NPT, 1/2 inch Female NPT
• Material(s): Malleable Iron
• Connection Size 1: 1/2 inch
• Connection Size 2: 1/2 inch
• Pressure Rating: 300 psi
• Temperature Rating: -20 to 350 degrees Fahrenheit
• Fitting Type: 90 degree elbow
• Thread Size: 1/2-14
• Domestic/Import: Import
• Length: 1.12 inches
• Nominal Size: 1/2 inch
• Standards/Approval: ANSI B 16.3, RoHS Compliant
