Midland Industries 64603 Union 1/2 in FPT x 1/2 in FPT

Product Description

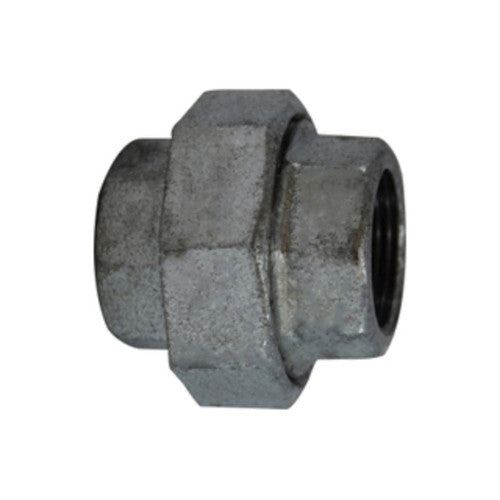

The MIDLAND INDUSTRIES 64603 Union fitting is designed to connect and disconnect two sections of threaded pipe without disturbing the surrounding piping system. It features dual 1/2-inch female pipe thread connections and is constructed from iron for strength and durability. This union fitting supports pressure ratings up to 150 PSI and operates within a temperature range of -20°F to 350°F. The galvanized finish provides added corrosion resistance.

• Malleable Iron Construction: Provides strength, durability, and resistance to cracking under pressure.
• Galvanized Finish: Offers enhanced corrosion resistance for extended service life.
• Union Fitting Design: Allows easy disconnection and maintenance of piping systems.

Product Highlights

The MIDLAND INDUSTRIES union fitting is suitable for plumbing, industrial, and mechanical applications where serviceability and reliability are required.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 64603

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type: FPT|FPT
• Connection Type 1: FPT
• Connection Type 2: FPT
• Dimension Standards: ANSI B 16.3
• Finish: Galvanized
• Fitting Type: Union
• Material: Iron
• Material Construction: Malleable Iron
• Pressure Class: 150 lb
• Pressure Rating: 150 psi
• Temperature Rating: -20 to 350 deg F
• Shape (Orientation): Straight
• Applicable Specs & Approvals: ASTM A 197, ASTM A 153, ASTM A164 LS, ANSI B 16.3, ANSI B 16.14, ANSI B 16.39, RoHS Compliant
• Threads: ANSI B 2.1 or BS 21 ASME B1.20.1 - RoHS Compliant - Tapered Threads
• Malleable Iron: ANSI B 16.3
