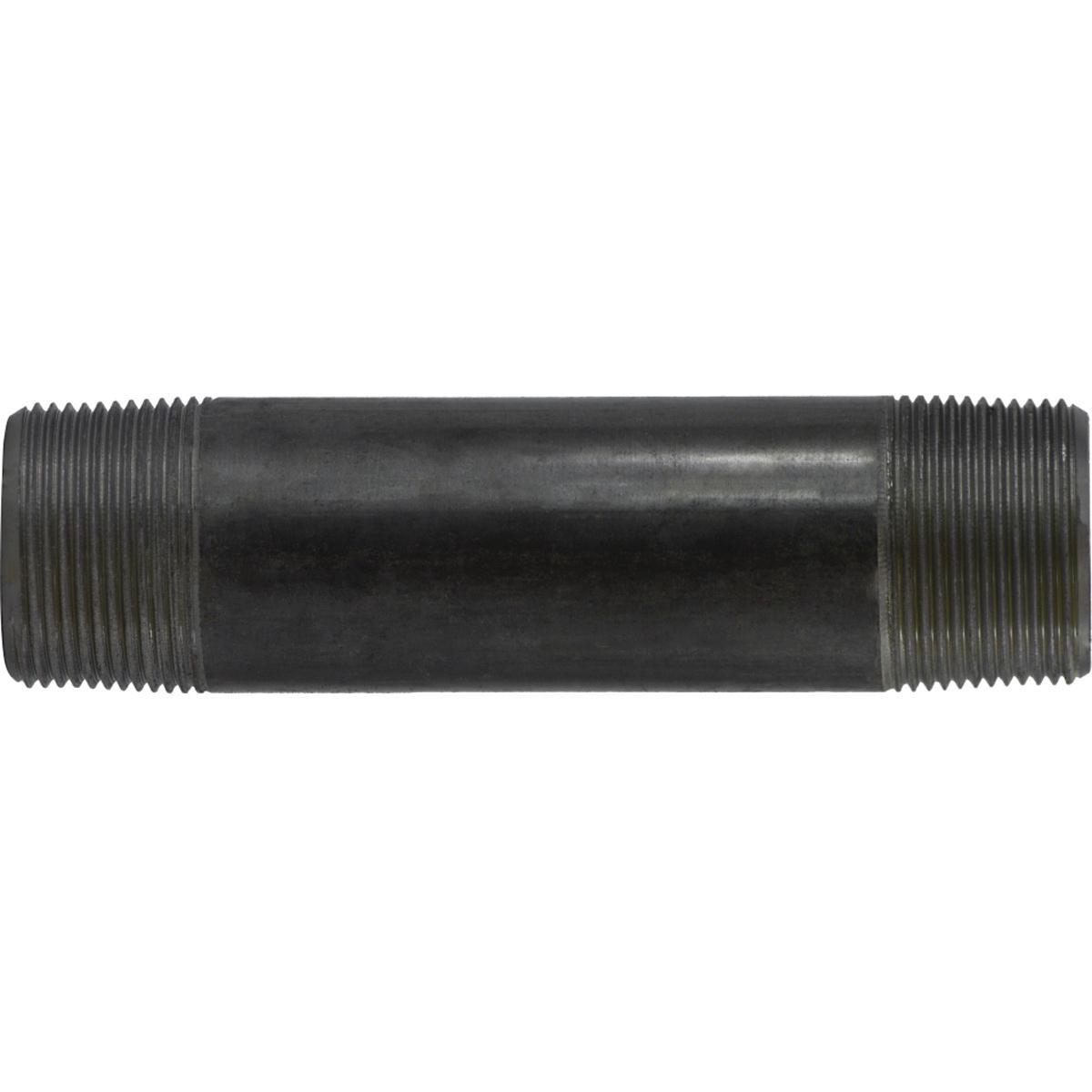

MIDLAND INDUSTRIES 57120 Welded Pipe Nipple 1-1/4 in MPT x 1-1/4 in MPT 1-5/8 in L

Product Description

The MIDLAND INDUSTRIES 57120 welded pipe nipple is constructed from steel and features a connection size of one and one-quarter inches both at MPT ends. This black schedule forty pipe nipple meets ANSI B1.20.1 dimension standards, ensuring compatibility and durability.

• MPT x MPT connection type
• Constructed from durable steel
• Suitable for pressure class 150 lb and operating pressure up to 1300 psi

Product Highlights

This pipe nipple is designed for effective fluid transfer in plumbing systems, making it a reliable choice for various applications in construction and repair tasks.

Product Information

Standard Information

• Connection Type: MPT x MPT
• Finish: Black

Technical Specifications

• Length: 1-5/8 inches
• Material: Steel
• Pressure Class: 150 lb
• Temperature Rating: -200 to 150 degrees F
• Thread Length: 1.01 inches
• Thread Size: 1-1/4-11-1/2
• Wall Thickness: 0.14 inches
• Operating Pressure [Max]: 1300 psi
• Package Quantity: 1
• Pipe Size: 1-1/4 inches
• Product Type: Pipe Nipples
• Schedule: Schedule 40
• Diameter: 1-1/4 inches
• Dimension Standards: ANSI B1.20.1
• Fitting Type: Nipple
• Schedule Rating: SCH 40
