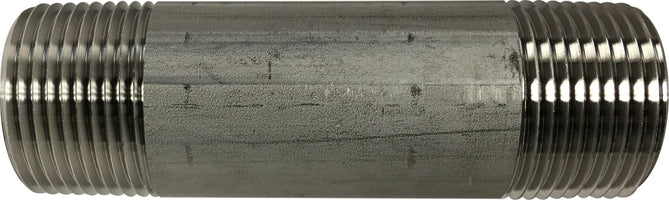

Midland Industries 49-106, 1 x 4-1/2 Stainless Steel 316 NPT Pipe Nipple, Schedule 40

Product Description

The Midland Industries 49-106 is a pipe nipple measuring one inch by four and one half inches. It is made from Type 316 stainless steel for enhanced durability. This pipe nipple complies with ASTM A312 and ASTM A733 specifications. It has male NPT threads on both ends, meeting ASME B1.20.1 standards. The design allows use in temperature ranges from negative sixty to four hundred fifty degrees Fahrenheit. The nipple can withstand a maximum pressure of one hundred fifty psi WOG at one hundred fifty degrees.

• Constructed from Type 316 stainless steel for corrosion resistance
• Features NPT threads on both ends as per ASME B1.20.1
• Meets NSF/ANSI 372 and NSF/ANSI 61 standards

Product Highlights

Suitable for various plumbing applications, the Midland Industries 49-106 pipe nipple ensures reliable performance in demanding environments.

Product Information

Standard Information

• NPT Size x Length: 1 x 4-1/2
• Max Pressure: 150 psi WOG @ 150°

Technical Specifications

• Temperature Range: -60° to 450°
• Shape: Straight
• Ends Configuration: 1in Male NPT
• Material(s): 316 Stainless Steel
• ASTM Standards: ASTM A733, ASTM A312
• ASME Standards: ASME B1.20.1
• NSF Standards: NSF/ANSI 372, NSF/ANSI 61
