Midland Industries 46905I Male x Female Chrome Plated Mini Ball Valve 1/2 inch

Product Description

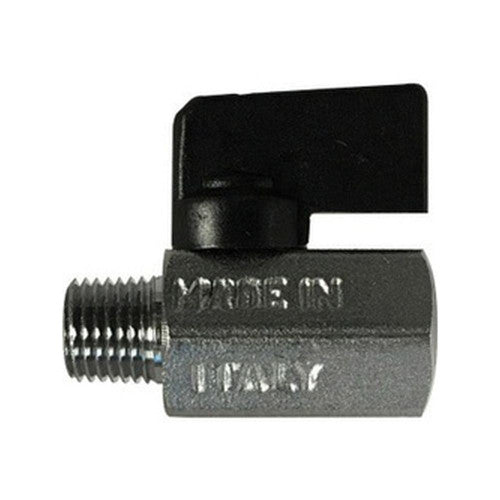

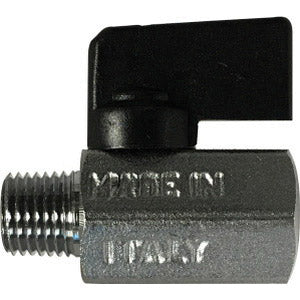

The MIDLAND INDUSTRIES 46905I is a miniature ball valve with a 1/2-in nominal size and MPT x FPT connection type. Constructed with a chrome-plated brass body, this valve is designed to handle a pressure rating of 235 psi and temperatures from 32 to 176 deg F. It features a 1/4-turn aluminum handle for easy operation.

• Chrome-plated brass body for durability
• MPT x FPT connection type
• 1/4-Turn Handle

Product Highlights

Miniature ball valve with chrome-plated brass body, MPT x FPT connection, and 1/4-turn handle.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 46905I
• Country of Origin: Italy

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Ball Material: Brass
• Body Material: Brass
• Connection Type: MPT x FPT
• Finish: Chrome Plated
• Handle Material: Aluminum
• Inlet to Outlet Length: 2.14 in
• Lead-Free/Contains Lead: Contains Lead
• Nominal Size: 1/2 in
• Operator Type: 1/4-Turn Handle
• Packing Material: PTFE
• Pressure Rating: 235 psi
• Seal Material: PTFE
• Seat Material: PTFE
• Stem Material: Brass
• Temperature Rating: 32 to 176 °F
• Thread Size: 1/2 - 14
• Top to Inlet Center: 1.26 in
• Trim Material: Steel Stem Nut/NBR O-Ring/Steel Screw
• Shape (Orientation): Straight
• Material(s): Chrome Plated Brass
• Seal Material(s): NBR 80
• Operating Pressure [max]: 235 psi
• Product Type: Male x Female Miniature Ball Valves
• Size: 1/2"
• Style: Male x Female Chrome Plated Mini Ball Valve
