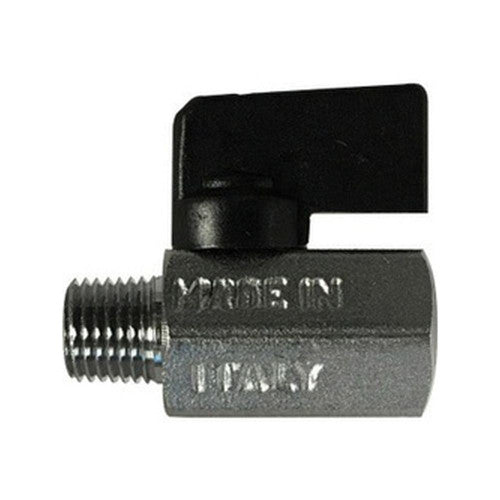

Midland Industries 46904I 3/8 m x f Chrome Mini Ball Valve

Product Description

The MIDLAND INDUSTRIES 46904I is a miniature ball valve with a 3/8-in nominal size. Featuring MPT x FPT connection type and a chrome-plated brass body, this valve is designed for durability and efficient operation. It withstands a pressure of 235 psi and temperatures from 32 to 176 deg F. Suitable for various applications requiring reliable flow control.

• Chrome-plated brass body for durability
• MPT x FPT connection type
• Operating temperature range of 32 to 176 deg F

Product Highlights

Miniature ball valve with chrome-plated brass body, MPT x FPT connections, and a 235 psi pressure rating.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 46904I
• Country of Origin: Italy

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Ball Material: Brass
• Body Material: Brass
• Connection Type: MPT x FPT
• Finish: Chrome Plated
• Handle Material: Aluminum
• Inlet to Outlet Length: 1.81 in
• Lead-Free/Contains Lead: Contains Lead
• Material Standard: CW517N, CW614N
• Nominal Size: 3/8 in
• Operator Type: 1/4-Turn Handle
• Packing Material: PTFE
• Pressure Rating: 235 psi
• Seal Material: PTFE
• Seat Material: PTFE
• Stem Material: Brass
• Temperature Rating: 32 to 176 °F
• Thread Size: 3/8 - 18
• Top to Inlet Center: 1.17 in
• Trim Material: Steel Stem Nut/NBR O-Ring/Steel Screw
• Shape (Orientation): Straight
• Ends Configuration: 3/8in Male NPT, 3/8in Female NPT
• Material(s): Chrome Plated Brass
• Seal Material(s): NBR 80
• Operating Pressure [max]: 235 psi
• Product Type: Male x Female Miniature Ball Valves
• Size: 3/8"
• Style: Male x Female Chrome Plated Mini Ball Valve
• Domestic/Import: Import
• Part #: 46904I
• Category: Ball Valve
• MFR #: 46904I
• Country of Origin: Italy
