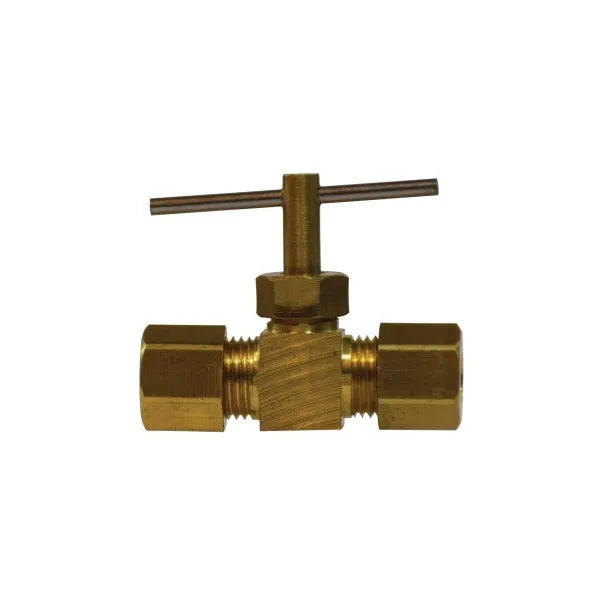

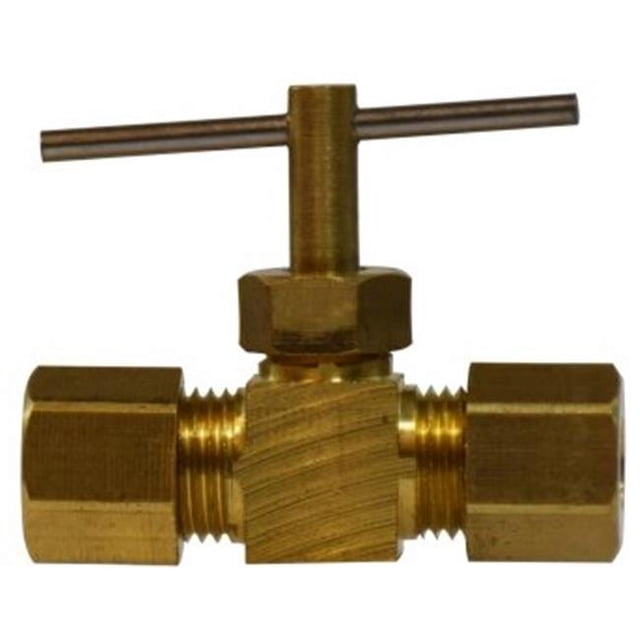

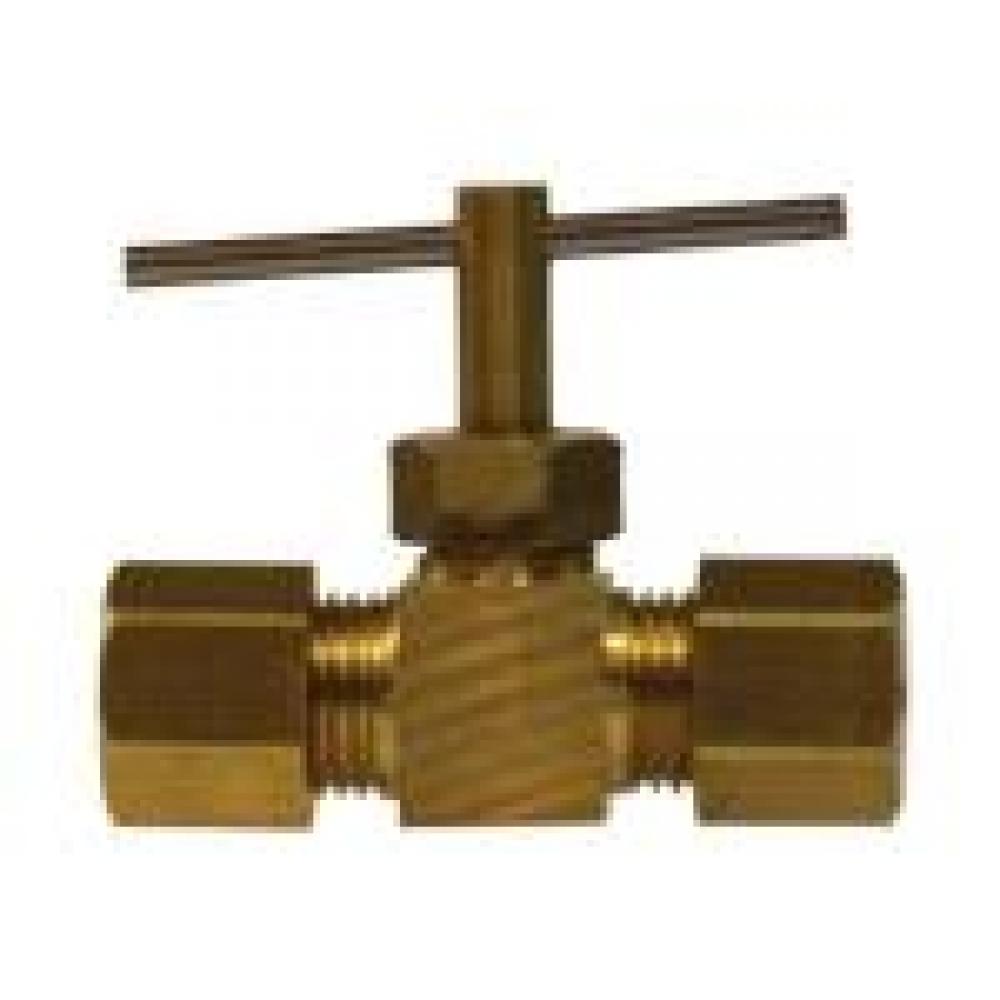

Midland Industries 46022 Needle Valve Fitting 5/16 inches Compression Straight

Product Description

The MIDLAND INDUSTRIES 46022 needle valve fitting is designed for instrumentation, hydraulic, and pneumatic systems. Designed for a maximum working pressure of 150 PSI. It features steel handles and metal-to-metal seats with fine-thread screwdown. It is not designed for natural gas, LPG, nuclear or aircraft applications.

• Maximum working pressure of 150 PSI
• Features steel handles
• Metal-to-metal seats with fine-thread screwdown

Product Highlights

This needle valve fitting is ideal for use in instrumentation, hydraulic, and pneumatic systems.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 46022

Technical Specifications

• Shape (Orientation): Straight
• Ends Configuration: 5/16in Tube Compression, 5/16in Tube Compression
• Material(s): Brass
• Size: 5/16"
• Brand: Midland Metal Manufacturing
• Manufacturer Part Number: 46022
• Manufacturer: Midland Industries
• Body Material: Brass
• Connection Type: Compression
• Pressure Class: 150 lb
• Top to Inlet Center: 1.08"
• Operating Pressure [max]: 150 psi
• Product Type: Needle Valves
• Special Interest: Domestic
• Shape: Straight
• Pressure Rating: 150psi
• Nominal Size: 5/16in
• APPLICATION: Used on instrumentation, hydraulic, and pneumatic systems
• Domestic/Import: Domestic
