Midland Industries 46011 1/4x1/8 Comp X M 90 Needle Valv

Product Description

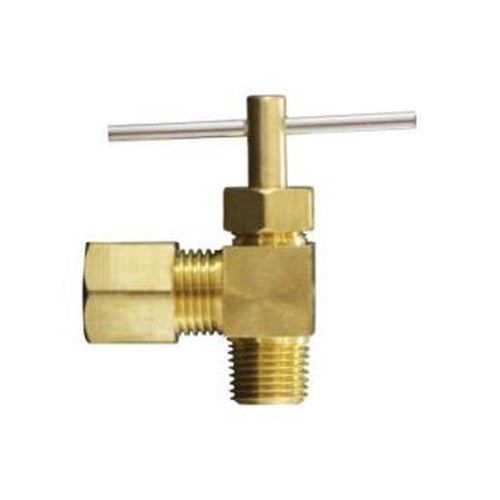

The MIDLAND INDUSTRIES 46011 is a 90-degree needle valve with 1/4 x 1/8 in nominal size and Compression x MPT connection type, designed for a maximum working pressure of 150 PSI. It is suitable for instrumentation, hydraulic, and pneumatic systems. The valve is made from brass and has a temperature rating of -45 to 250 deg F.

• Features a Compression x MPT connection type.
• Designed for a maximum working pressure of 150 PSI.
• Suitable for instrumentation, hydraulic, and pneumatic systems.

Product Highlights

This brass needle valve is designed for hydraulic, instrumentation, and pneumatic systems, offering reliable performance with its steel handles and metal-to-metal seats.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 46011

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Body Material: Brass
• Connection Type: Compression x MPT
• Domestic/Import: Import
• Inlet to Outlet Length: 0.56 in
• Nominal Size: 1/4 x 1/8 in
• Pressure Rating: 150 psi
• Temperature Rating: -45 to 250 deg F
• Top to Inlet Center: 0.93 in
• Shape (Orientation): 90 Degree
• Ends Configuration: 1/4in Tube Compression, 1/8in Male NPT
• Handle Material: Steel
• Lead-Free/Contains Lead: Contains Lead
• Operator Type: Pressed-On Handle
• Actuator Type: Handle
• Material: Brass
• Material Construction: Brass
• Product Type: Needle Valve
• Thread Size: 7/16-24 x 1/8-27
• Category: Brass Fittings
• Shape: Straight/Connector
• Section: Needle Valves
• Master Item: Comp x Male Pipe Angle
