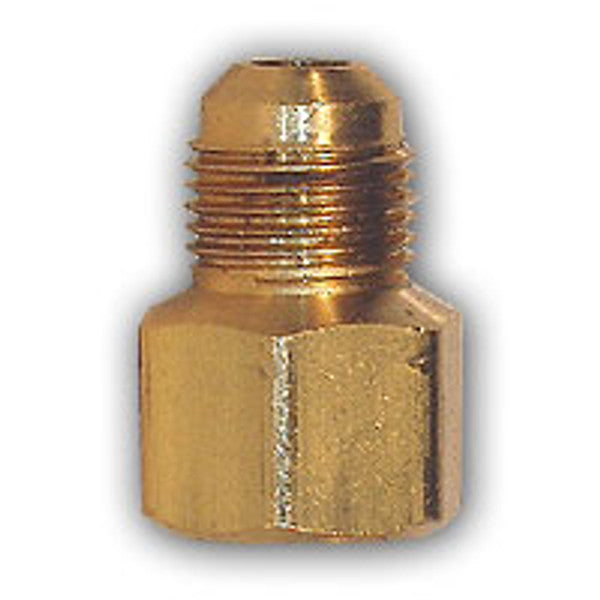

MIDLAND INDUSTRIES 46-812 1/2 Male Flare x 3/4 FIP Adapter

Product Description

The MIDLAND INDUSTRIES 46-812 adapter enables the connection of two fittings with different connection types. This product has a 1/2-inch male flared connection on one end and a 3/4-inch female National Pipe Thread (FNPT) connection on the other. It is made of brass, making it ideal for use with copper, brass, aluminum, and steel hydraulic tubing.

Designed for a wide temperature range of -65 to 250 degrees Fahrenheit, it can also handle pressures up to 750 psi. The adapter measures 1.6 inches in length and features a hex size of 1.12 inches. The thread sizes are 3/4-16 and 3/4-14.

• Connects 1/2-inch male flared to 3/4-inch FNPT fittings.
• Constructed from durable brass for reliable performance.
• Rated for high pressure and extreme temperatures.

Product Highlights

This adapter is essential for plumbers and HVAC professionals who need reliable connections between different pipe sizes and types.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Material: Brass

Technical Specifications

• Connection Size 1: 1/2 in
• Connection Size 2: 3/4 in
• Connection Type: Male Flared | FNPT
• Fitting Type: Adapter
• Hex Size: 1.12 in
• Pressure Rating: 750 psi
• Temperature Rating: -65 to 250 deg F
• Thread Size: 3/4-16 x 3/4-14
