Midland Industries 44504LF 1/2X1/4 Lf Imp Hex Bush

Product Description

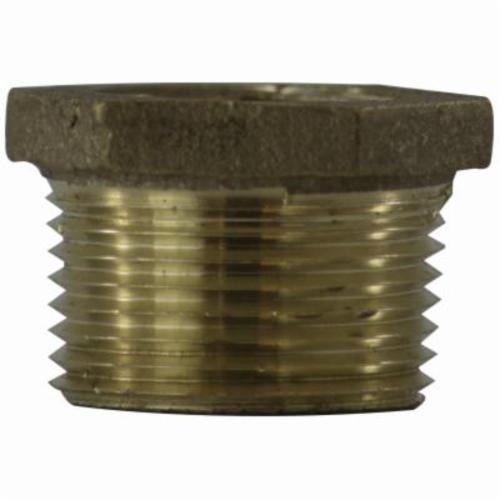

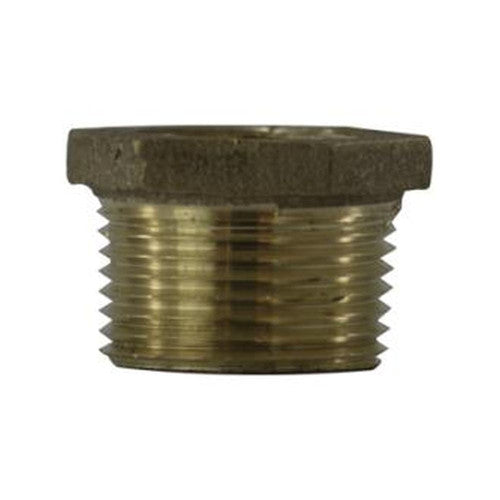

The MIDLAND INDUSTRIES 44504LF is a hex bushing with a 1/2 in MPT x 1/4 in FPT connection, constructed from bronze. It is designed for steam, water, gas, oil, and air service. The bushing conforms to AWWA C800, ASME B16.15, ASME B1.20.1, WW-P-460C, and MSS-SP-106 dimension standards and has a pressure class of 125 lb.

• Suitable for steam, water, gas, oil and air service
• Compliant with ANSI B2.1 or BA 21 and Fed. WW-P-460C standards
• Constructed from lead-free bronze

Product Highlights

This hex bushing features a 1/2 in MPT to 1/4 in FPT connection, ideal for various plumbing and piping applications requiring a transition between sizes.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 44504LF

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Connection Size 1: 1/2 in
• Connection Size 2: 1/4 in
• Connection Type: MPT|FPT
• Connection Type 1: MPT
• Connection Type 2: FPT
• Dimension Standards: AWWA C800, ASME B16.15, ASME B1.20.1, WW-P-460C, MSS-SP-106
• Fitting Type: Bushing
• Hex Size: 0.93 in
• Material: Bronze
• Material Construction: Lead-Free Bronze
• Pressure Class: 125 lb
• Thread Size: 1/2-14 x 1/4-18
• Application: For steam, water, gas, oil and air service
• Standard Approvals: ANSI B2.1 or BA 21 and Fed. WW-P-460C|ANSI/ASME B1.20.1|ASTM B62-93 (85,5,5,5) C83600|MSS-SP-106|RoHS Compliant|UL Listed/FM Approved
• Type: Imperial
• Nominal Size: 1/2 x 1/4 in
