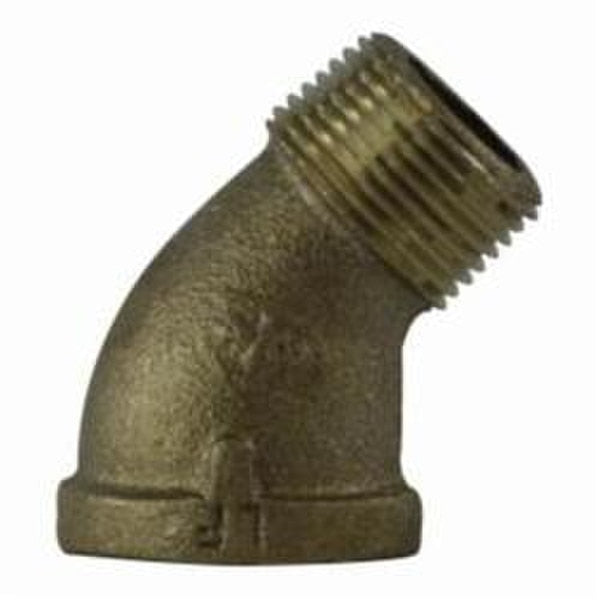

Midland Industries 44203LF 45 deg Street Elbow 1/2 in

Product Description

MIDLAND INDUSTRIES 44203LF 45 deg Street Elbow, featuring 1/2 in MPT x 1/2 in FPT connections and constructed from bronze. These bronze threaded fittings are manufactured from smooth-cored castings, designed to provide full flow with minimum restriction. All threads are accurately machined and gauged to ensure a perfect fit with the pipe.

• Lead Free: Meets Federal State Drinking Water Act, Lead Free Requirement
• Bronze provides a tighter seal and is easier to install than other metals.
• Resists the harmful effects of corrosion when coming into contact with salt water or fresh water polluted with mineral acids or peaty soils.

Product Highlights

This lead-free bronze fitting is ideal for water, plumbing, heating, pneumatic, and marine applications. Approved to ANSI/NSF 61-4 California AB 1953 and conforms to AWWA C800.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 44203LF

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Connection Size 1: 1/2 in
• Connection Size 2: 1/2 in
• Connection Type: MPT|FPT
• Connection Type 1: MPT
• Connection Type 2: FPT
• Dimension Standards: AWWA C800, ASME B16.15, ASME B1.20.1, WW-P-460C, MSS-SP-106
• Fitting Type: 45 deg Elbow
• Material: Bronze
• Material Construction: Lead-Free Bronze
• Thread Size: 1/2-14
• Shape (Orientation): 45 Degree
• Ends Configuration: 1/2in Male NPT, 1/2in Female NPT
• Material(s): Lead Free Bronze
• Applicable Specs & Approvals: NSF 61, AWWA C800, Lead Free as per the Safe Drinking Water Act
• Special Properties: Lead Free
• Applications: Water, Plumbing, Heating, Pneumatic and Marine Applications
• Class: 125 (150) For steam, water, gas, oil and air service
• Specifications: Approved to ANSI/NSF 61-4 California AB 1953 Brass fittings conform to AWWA C800 Brass castings conform to ASTM B584, UNS Alloy C8933 Brass fittings dimensions conform to ASME B16.15 NPT threads on all fittings conform to ASME B1.20.1 Brass unions conform to specification A-A-59617 Manufacturing facilities are ISO 9001:2008
