MIDLAND INDUSTRIES 41S-14 7/8 SAE Flared Nut

Product Description

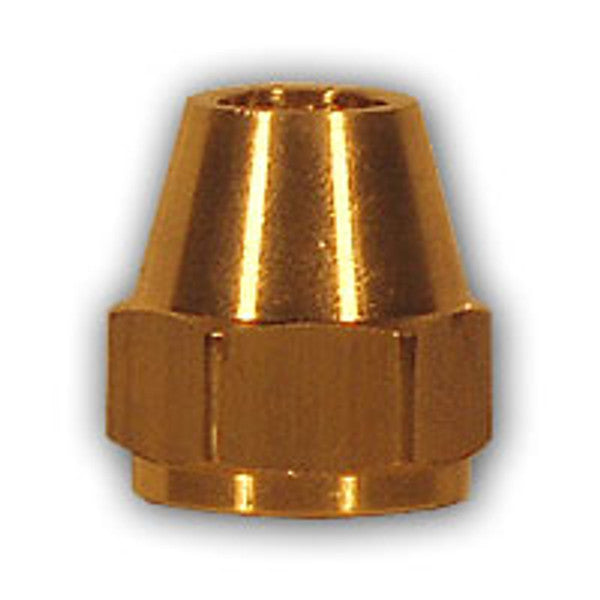

The Midland Industries 41S-14 is a brass nut suited for copper, brass, aluminum, and steel hydraulic tubing. This nut offers a 7/8-inch SAE flared connection type. It is made of durable brass with a hex size of 1-1/2 inches. The nut operates effectively within a temperature range of minus sixty-five to two hundred fifty degrees Fahrenheit. With a length of one point sixty-two inches, it can handle a pressure rating of up to four hundred fifty psi.

• Features a 7/8-inch SAE flared connection.
• Constructed from brass material.
• Compatible with systems operating between minus sixty-five to two hundred fifty degrees Fahrenheit up to four hundred fifty psi.

Product Highlights

This nut is essential for connecting flared tubes in fluid transfer systems.

Product Information

Standard Information

• Brand: Midland Industries
• Material: Brass

Technical Specifications

• Connection Size: 7/8 inches
• Connection Type: SAE Flared
• Fitting Type: Nut
• Compatible Tubing: Copper, Brass, Aluminum, Steel
• Hex Size: 1-1/2 inches
• Length: 1.62 inches
• Pressure Rating: 450 psi
• Temperature Rating: -65 to 250 degrees Fahrenheit
