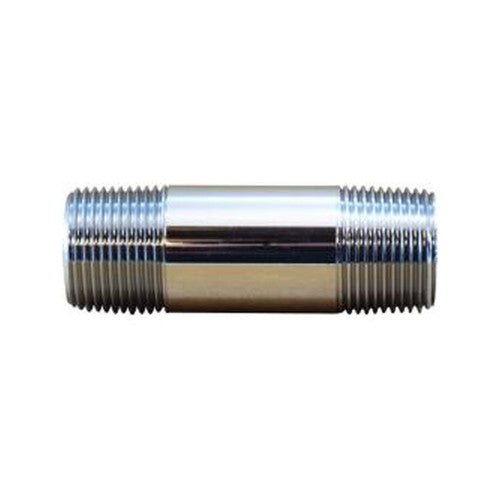

Midland Industries 41041 Pipe Nipple 3/8 in x 1-1/2 in

Product Description

The MIDLAND INDUSTRIES 41041 Pipe Nipple is a 3/8 in MPT x 3/8 in MPT, 1-1/2 in, chrome-plated brass fitting. Constructed from lead-free brass, this schedule 40 seamless nipple is certified by NSF to NSF/ANSI 61 for use in drinking water supplies of pH 6.5 and above. Threads are American Standard taper pipe threads (NPT) in accordance with ANSI B1.20.1.

• Lead Free
• Chrome Plated Brass
• 3/8 in Diameter and 1-1/2 in Length

Product Highlights

This lead-free, chrome-plated brass nipple is ideal for use in potable water systems, ensuring safe and reliable connections.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 41041

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Connection Size 1: 3/8 in
• Connection Size 2: 3/8 in
• Connection Type: MPT|MPT
• Connection Type 1: MPT
• Connection Type 2: MPT
• Diameter: 3/8 in
• Finish: Chrome-Plated
• Fitting Type: Nipple
• Length: 1-1/2 in
• Material: Brass
• Material Construction: Lead-Free Brass
• Thread Size: 3/8-18
• Shape (Orientation): Straight
• Applicable Specs & Approvals: ASTM B43, ANSI B1.20.1, WW-N-351, ANSI/ASTM B687-96, NSF 61, MS51846 STD, RoHS Compliant, Lead Free as per the Safe Drinking Water Act
• Special Properties: Lead Free
• Package Quantity: 1
• Pipe Size: 3/8"
• Product Type: Pipe Nipples
