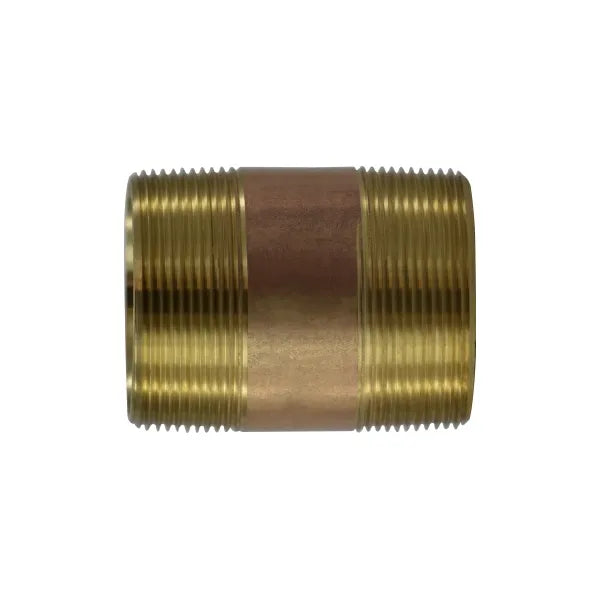

Midland Industries 40168 Seamless Pipe Nipple 2 in x 6 in

Product Description

The MIDLAND INDUSTRIES 40168 seamless pipe nipple features 2 in MPT connections on both ends and is made from lead-free red brass. This Schedule 40 nipple is suitable for use in various plumbing applications. It adheres to ANSI B1.20.1, WW-N-351, and MS 51846 dimension standards and is certified by NSF to NSF/ANSI 61 for use in drinking water supplies of pH 6.5 and above.

• Lead Free
• Schedule 40
• Seamless Nipple

Product Highlights

Lead-free red brass pipe nipple with 2 inch MPT connections, ideal for plumbing applications requiring a durable and safe connection.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 40168

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Connection Size 1: 2 in
• Connection Size 2: 2 in
• Connection Type: MPT x MPT
• Connection Type 1: MPT
• Connection Type 2: MPT
• Diameter: 2.063 in ID x 2.375 in OD
• Dimension Standards: ANSI B1.20.1, WW-N-351, MS 51846
• Fitting Type: Nipple
• Length: 6 in
• Material: Lead-Free Red Brass
• Material Construction: Lead-Free Red Brass
• Pressure Class: 125 lb
• Pressure Rating: 540 psi at 100 deg F
• Schedule Rating: SCH 40
• Temperature Rating: -20 to 400 deg F
• Thread Size: 2-11-1/2
• Shape (Orientation): Straight
• Material(s): Lead Free Brass
• Applicable Specs & Approvals: ASTM B43, ANSI B1.20.1, WW-N-351, ANSI/ASTM B687-96, NSF-61 Approved, MS51846 STD, RoHS Compliant, Lead Free as per the Safe Drinking Water Act
• Special Properties: Lead Free
• Operating Pressure [Max]: 540 psi at 100 deg F
• Package Quantity: 1
• Pipe Size: 2"
• Product Type: Pipe Nipples
• Schedule: Schedule 40
• Shape: Nipple
