MIDLAND INDUSTRIES 40127 Lead Free Schedule 40 Seamless Nipple 1-1/4 Inch Diameter

Product Description

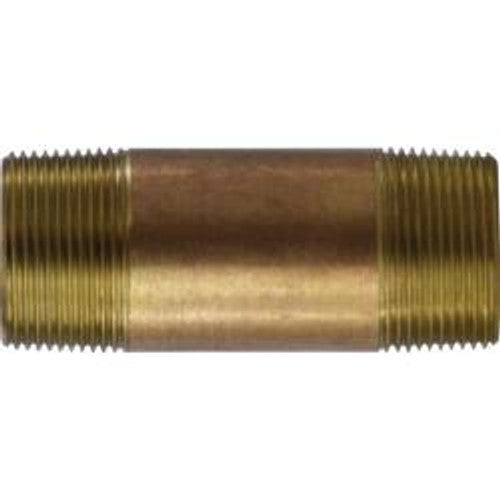

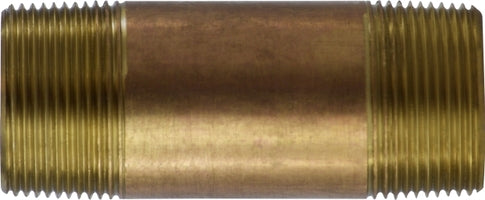

The MIDLAND INDUSTRIES 40127 is a lead-free schedule 40 seamless nipple with a diameter of one and one-fourth inches and a length of five inches. It is certified by NSF to NSF/ANSI 61, making it suitable for drinking water supplies with a pH of six point five and above. This brass nipple complies with ANSI/ASTM B687-96 and MS51846 standards. The threads follow American Standard taper pipe threads (NPT) according to ANSI B1.20.1.

• Lead Free Construction
• Schedule 40 Design
• Seamless Nipple

Product Highlights

This product is ideal for plumbing applications where lead-free materials are required. It is designed for high-performance use in various conditions.

Product Information

Standard Information

• Shape (Orientation): Straight
• Ends Configuration: 1-1/4 Inch Male NPT

Technical Specifications

• Material(s): Lead Free Brass
• Applicable Specs & Approvals: ASTM B43, ANSI B1.20.1, WW-N-351, ANSI/ASTM B687-96, NSF-61 Approved, MS51846 STD, RoHS Compliant
• Special Properties: Lead Free
• Connection Type: MPT x MPT
• Length: 5 inches
• Pressure Class: 125 lb
• Temperature Rating: -20 to 400 degrees F
• Thread Size: 1-1/4 Inch-11-1/2
• Operating Pressure [Max]: 690 psi at 100 degrees F
• Package Quantity: 1
• Pipe Size: 1-1/4 inches
• Product Type: Pipe Nipples
• Schedule: Schedule 40
• Connection Size 1: 1-1/4 inches
• Connection Size 2: 1-1/4 inches
• Connection Type 1: MPT
• Connection Type 2: MPT
• Diameter: 1.368 inches ID x 1.66 inches OD
• Dimension Standards: ANSI B1.20.1, WW-N-351, MS 51846
• Fitting Type: Nipple
• Material Construction: Lead-Free Red Brass
• Pressure Rating: 690 psi at 100 degrees F
• Schedule Rating: SCH 40
• Additional Information: 0.146 inches Wall Thickness, 0.980 lb Weight
