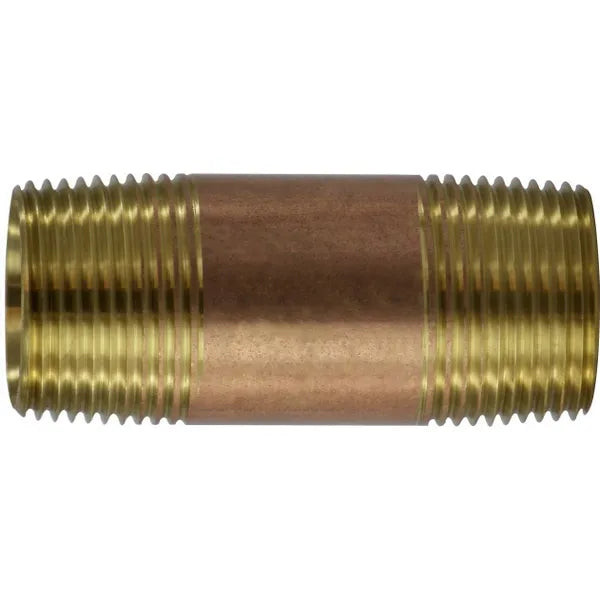

Midland Industries 40106 Seamless Pipe Nipple 1 in x 4-1/2 in

Product Description

The MIDLAND INDUSTRIES 40106 seamless pipe nipple features 1 in MPT connections on both ends and a length of 4-1/2 inches. Constructed from lead-free red brass, this schedule 40 nipple is suitable for use in drinking water supplies with a pH of 6.5 and above. It conforms to ANSI B1.20.1, WW-N-351, and MS 51846 dimension standards.

• Lead Free
• Schedule 40
• Seamless Nipple

Product Highlights

This red brass nipple is ideal for plumbing applications requiring a durable and lead-free connection.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 40106
• Country of Origin: United States

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Connection Size 1: 1 in
• Connection Size 2: 1 in
• Connection Type: MPT x MPT
• Connection Type 1: MPT
• Connection Type 2: MPT
• Diameter: 1.063 in ID x 1.315 in OD
• Dimension Standards: ANSI B1.20.1, WW-N-351, MS 51846
• Fitting Type: Nipple
• Length: 4-1/2 in
• Material: Lead-Free Red Brass
• Material Construction: Lead-Free Red Brass
• Pressure Class: 125 lb
• Pressure Rating: 630 psi at 100 deg F
• Schedule Rating: SCH 40
• Temperature Rating: -20 to 400 deg F
• Thread Size: 1-11-1/2
• Shape (Orientation): Straight
• Material(s): Lead Free Brass
• Applicable Specs & Approvals: ASTM B43, ANSI B1.20.1, WW-N-351, ANSI/ASTM B687-96, NSF 61, MS51846 STD, RoHS Compliant, Lead Free as per the Safe Drinking Water Act
• Special Properties: Lead Free
• Operating Pressure [Max]: 630 psi at 100 deg F
• Package Quantity: 1
• Pipe Size: 1"
• Product Type: Pipe Nipples
• Schedule: Schedule 40
