Midland Industries 32039 1/4 inches x 1/4 inches Barb x Male 90 feet Elbow

Product Description

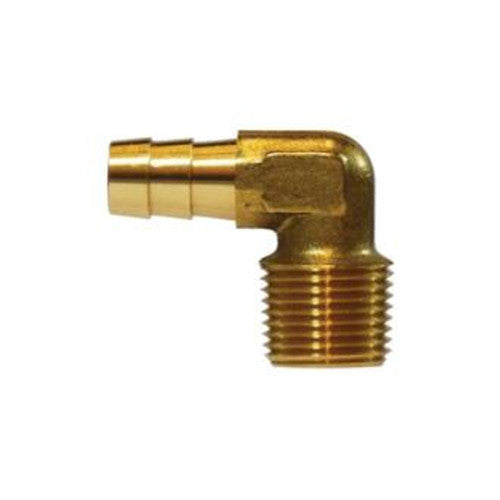

The MIDLAND INDUSTRIES 32039 is a 90-degree male elbow fitting. Constructed from forged brass, this fitting features a 1/4-in hose barb connection and a 1/4-in male NPTF connection. It is designed for use with hose clamps, similar type clamps, or crimped ferrules and is not for use on potable water.

• Features a 1/4-in hose barb and 1/4-in male NPTF connection
• Constructed from forged brass
• Operating temperature ranges from -40 to 160 degrees F at 150 PSI maximum

Product Highlights

Forged brass 90-degree elbow with 1/4-in hose barb and 1/4-in male NPTF connections. Ideal for use with hose clamps or crimped ferrules.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 32039

Technical Specifications

• Connection Size 1: 1/4 in
• Connection Size 2: 1/4 in
• Connection Type: Hose Barb|MPT
• Connection Type 1: Hose Barb
• Connection Type 2: Male NPTF
• Fabrication: Forged
• Fitting Type: 90-deg Elbow
• For Use With: Hose Clamp, Similar Type Clamp or A Crimped Ferrule
• Material: Brass
• Maximum Operating Pressure: 150 psi
• Operating Temperature: -40 to 160 °F
• Thread Size 2: 1/4 - 18
• Shape (Orientation): 90 Degree
• Ends Configuration: 1/4in Hose Barb, 1/4in Male NPTF
• Material(s): Brass
• Body Size: 0.47 in
• Center to End: 1.01 x 0.87 in
• Material Construction: Forged Brass
• Primary brand: Midland Industries
• Order code / Manufacturer SKU: 32039
• Manufacturer product status: Commercialized
• Manufacturer description: Forged Hose Barb 90 Deg Elbow - 1/4 X 1/4 HOSE BARB X MIP ELBOW
