Midland Industries 32003 Kf-03-04-Ps 3/16 inches x 1/4 inches Barb x Male Adapter

Product Description

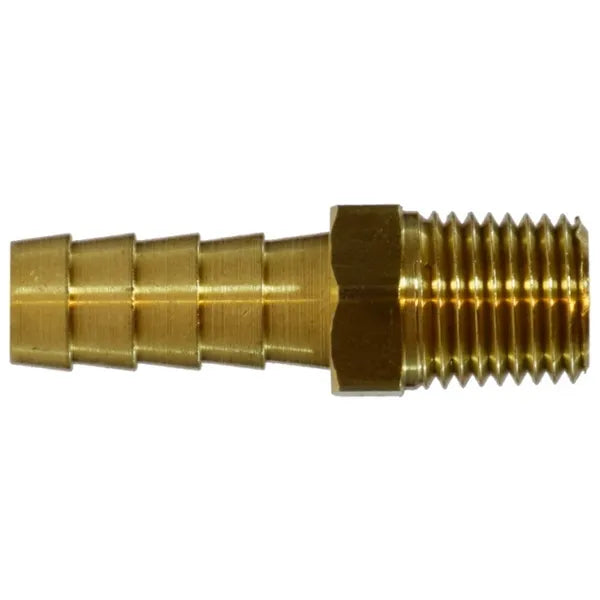

The MIDLAND INDUSTRIES 32003 is a 3/16" x 1/4" Barb x Male Adapter. This rigid male adapter is constructed from brass and is not lead-free. It is designed for use with a hose clamp, similar type clamp, or a crimped ferrule and is not for use on potable water.

• Made of brass
• Features a 3/16" hose barb and 1/4" male NPTF connection
• Maximum operating pressure of 150 psi

Product Highlights

This brass fitting is a rigid male adapter with a hose barb, suitable for use with hose clamps or crimped ferrules. It operates within a temperature range of -40 to 160 °F.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 32003

Technical Specifications

• MPN: 32003
• Brand: MIDLAND INDUSTRIES
• Connection Size 1: 3/16 in
• Connection Size 2: 1/4 in
• Connection Type: HB|MPT
• Connection Type 1: Hose Barb
• Connection Type 2: Male NPTF
• Fabrication: Machined
• Fitting Type: Adapter
• For Use With: Hose Clamp, Similar Type Clamp or A Crimped Ferrule
• Hex Size: 0.56 in
• Material: Brass
• Maximum Operating Pressure: 150 psi
• Operating Temperature: -40 to 160 °F
• Thread Size 2: 1/4 - 18
• Shape (Orientation): Straight
• Ends Configuration: 3/16in Hose Barb, 1/4in Male NPTF
• Material(s): Brass
• Shape: Straight/Connector
• Section: Hose Barb
• Master Item: Rigid Male Adapter
