Midland Industries 28266 1/8 mip x mip 90 elbow

Product Description

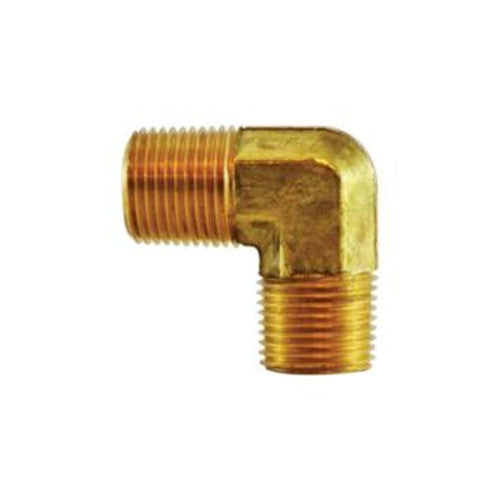

The MIDLAND INDUSTRIES 28266 is a forged 90-deg Male Elbow with 1/8-in Male NPTF x 1/8-in Male NPTF, made of brass. It is designed for use with aluminum, brass, bronze, copper, iron, and steel pipe in grease, fuels, LP, natural gas, refrigeration, instrumentation, and hydraulic systems. Operating pressure up to 1200 PSI.

• Forged 90-deg Male Elbow
• 1/8-in Male NPTF x 1/8-in Male NPTF
• Brass construction

Product Highlights

This brass elbow fitting is suitable for various applications, including fuel, refrigeration, and hydraulic systems. Meets SAE, ASA, and ASME standards.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 28266

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Connection Size 1: 1/8 in
• Connection Size 2: 1/8 in
• Connection Type: MIP|MIP
• Connection Type 1: MIP
• Connection Type 2: MIP
• Fabrication: Forged
• Fitting Type: 90 deg Elbow
• For Use With: Aluminum, Brass, Bronze, Copper, Iron and Steel Pipe
• Material: Brass
• Pressure Rating: 1200 psi
• Temperature Rating: -65 to 250 °F
• Thread Size 1: 1/8 - 27
• Thread Size 2: 1/8 - 27
• Application: For grease, fuels, LP, natural gas, refrigeration, instrumentation and hydraulic systems
• Standard Approvals: SAE J530, J531|ASA|ASME Compliant
• Shape (Orientation): 90 Degree
• Ends Configuration: 1/8in Male NPTF, 1/8in Male NPTF, Some Ends Match
• Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
• Vibration: Fair Resistance
• Lead Free: Not Lead Free
• Pipe Size: 1/8"
• Thread Size: 1/8-27
• Working Pressure: 1200 PSI
• Thread OD: 3/8"
• Center to End: 0.79 in
• Material Construction: Forged Brass
