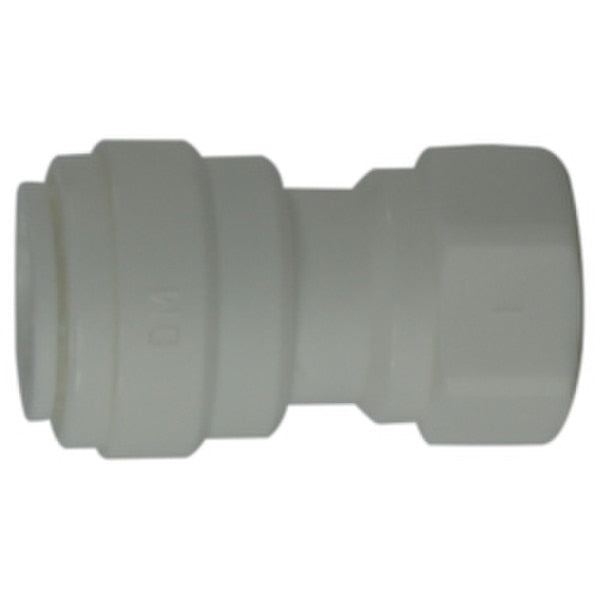

Midland Industries 20941P Adapter 3/8 in. Tube x 9/16-24 FE PLSTC ADPT

Product Description

The MIDLAND INDUSTRIES 20941P adapter connects a 3/8 in push-in fitting to a 9/16 in female compression fitting. Constructed from plastic, this adapter is suitable for use in water purification, food/beverage, and pneumatic systems. It has a pressure rating of 170 psi and a temperature rating of 34 to 150 degrees F.

• All connections can be assembled & disassembled repeatedly.
• Provides quick and convenient assembly - saving time & expense.
• Unique oval collet design is superior and more practical.

Product Highlights

This plastic adapter provides a reliable connection for various applications, including air, gases, vacuum, and liquids.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 20941P

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Connection Size 1: 3/8 in
• Connection Size 2: 9/16 in
• Connection Type: Push-Fit|Compression
• Connection Type 1: Push-In
• Connection Type 2: Female Compression
• Fitting Type: Adapter
• Material: Plastic
• Pressure Rating: 170 psi
• Temperature Rating: 34 to 150 deg F
• Thread Size: 9/16-24
• Tube OD: 3/8 in
• Application: For water purification, food/beverage and pneumatic systems, air, gases, vacuum, and liquids
• Standard Approvals: ANSI/NSF-51/61|SK Zert|US FDA|WRAS
• Shape (Orientation): Straight
• Ends Configuration: 3/8in Push-to-Connect, 9/16 Tube Compression
• Model: 20941P
• Tube OD Size: 3/8"
