Midland Industries 18237 1/2 inches x 3/8 inches #69F COM x MA 90

Product Description

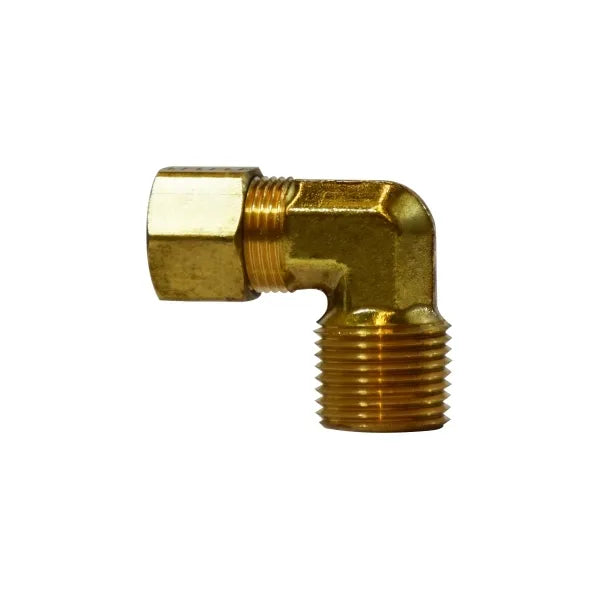

The MIDLAND INDUSTRIES 18237 is a 1/2" x 3/8" #69F COM x MA 90 fitting. It is designed for use with copper, aluminum, and thermoplastic tubing. This 90-degree elbow fitting is manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved.

• Use with copper, aluminum and thermoplastic tubing.
• Not recommended for steel tubing.
• Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved.

Product Highlights

This brass 90-degree elbow fitting has a pressure rating of 200 psi and a temperature rating of -65 to 250 deg F.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 18237

Technical Specifications

• Connection Size 1: 1/2 in
• Connection Size 2: 3/8 in
• Connection Type: Tube|MNPT
• Connection Type 1: Tube OD
• Connection Type 2: Male NPTF
• Fitting Type: 90 deg Elbow
• For Use With: Copper, Aluminum and Thermoplastic Tubing
• Material: Brass
• Material Construction: Forged Brass
• Pressure Rating: 200 psi
• Temperature Rating: -65 to 250 deg F
• Thread Size: 11/16-20 x 3/8-18
• Shape (Orientation): 90 Degree
• Ends Configuration: 1/2in Tube Compression, 3/8in Male NPTF
• Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
• Body Size: 0.56 in
• Center to End: 0.88 x 1.03 in
