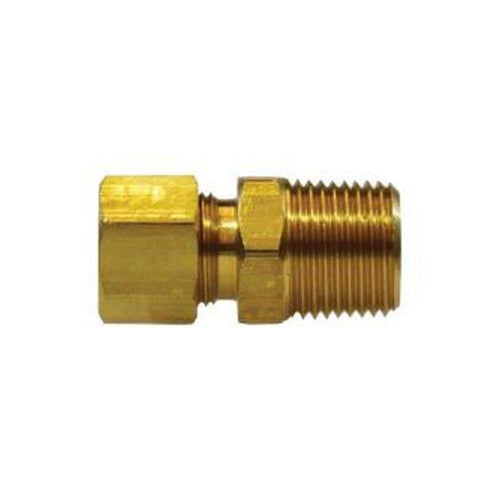

Midland Industries 18187 Adapter 3/8 x 1/8 Comp x Mip

Product Description

The MIDLAND INDUSTRIES 18187 adapter features 3/8-in compression x 1/8-in Male NPTF connections and is constructed from brass. It is designed for use with copper, aluminum, and thermoplastic tubing in low to medium pressure applications. This adapter meets specifications and standards of ASA, ASME and SAE.

• Features 3/8-in Compression x 1/8-in Male NPTF connections
• Made of brass material
• Suitable for use with copper, aluminum, and thermoplastic tubing

Product Highlights

This brass adapter is ideal for connecting different sized tubes in various applications, offering fair vibration resistance and a temperature range of -65 to 250 deg F.

Product Information

Standard Information

• Brand: MIDLAND INDUSTRIES
• Manufacturer Part Number: 18187

Technical Specifications

• Brand: MIDLAND INDUSTRIES
• Connection Size 1: 3/8 in
• Connection Size 2: 1/8 in
• Connection Type: Tube|MNPT
• Connection Type 1: Compression
• Connection Type 2: Male NPTF
• Fitting Type: Adapter
• For Use With: Copper, Aluminum and Thermoplastic Tubing
• Hex Size: 0.56 in
• Material: Brass
• Pressure Rating: 200 psi
• Temperature Rating: -65 to 250 deg F
• Thread Size 1: 9/16 - 24
• Thread Size 2: 1/8 - 27
• Shape (Orientation): Straight
• Ends Configuration: 3/8in Tube Compression, 1/8in Male NPTF
• Material(s): Brass
• Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards
• Material Construction: Brass
• Thread Size: 9/16-24 x 1/8-27
